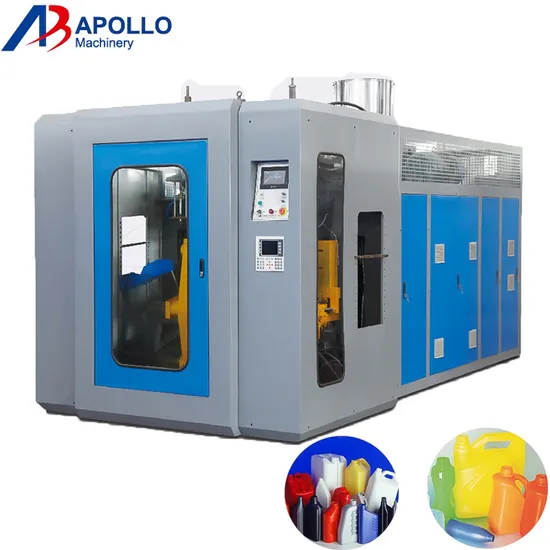

ABLB 65 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 5L.
The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.

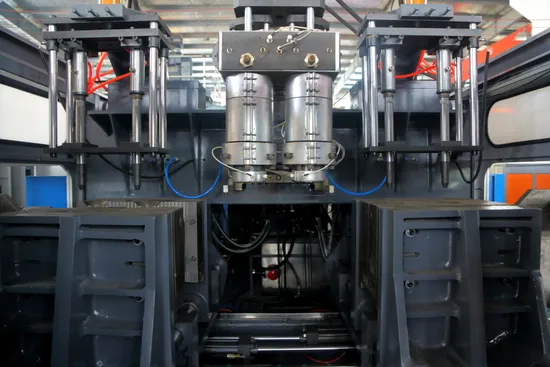

(2)Single station two die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
The technical parameter: | Name | Units | ABLB65I |
| Max.product volume | L | 5 |
| Dry cycle | PC/H | 1000 |
| Screw diameter | MM | 65 |
| Screw L/D ratio | L/D | 24 |
| Screw drive power | KW | 18.5 |
| Screw heating capacity | KW | 5-6 |
| No. of heating zone | ZONE | 3 |
| Output of HDPE | KG/H | 70 |
| Oil pump drive power | KW | 7.5 |
| Clamping force | KN | 65 |

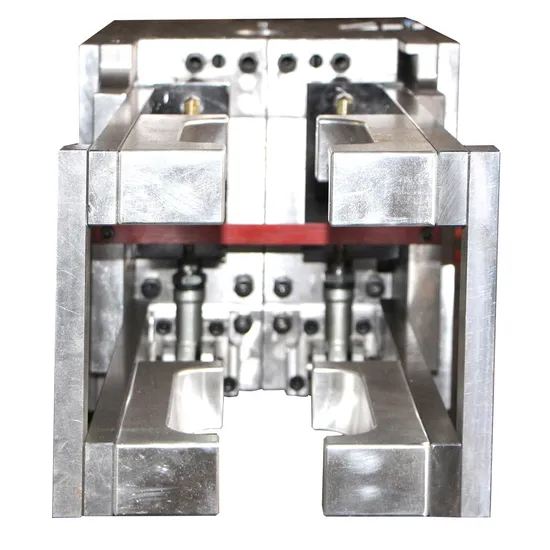

| Max.size of mold | MM | 300×370 |
| Template size | MM | 290×320 |
| Mold stroke | MM | 150-500 |
| Max. die diameter | MM | 170 |
| Blowing pressure | MPA | 0.6 |
| Air volume | M3/MIN | 0.6 |
| Cooling water pressure | MPA | 0.3 |
| Water consumption | L/MIN | 50 |
| Size of machine | L×W×H | 3.9×2.0×2.6 |
| Weight of machine | TON | 5.5 |
The main component of the machine: | Electronic Parts |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |

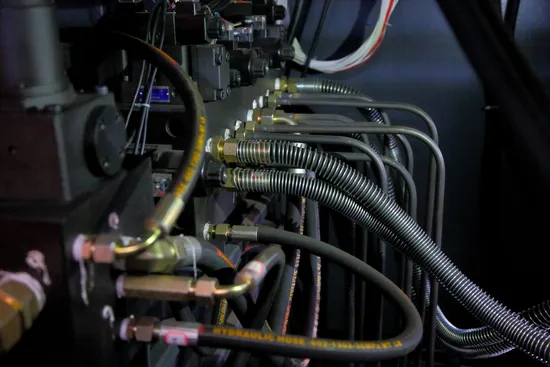

| Hydraulic Parts |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |

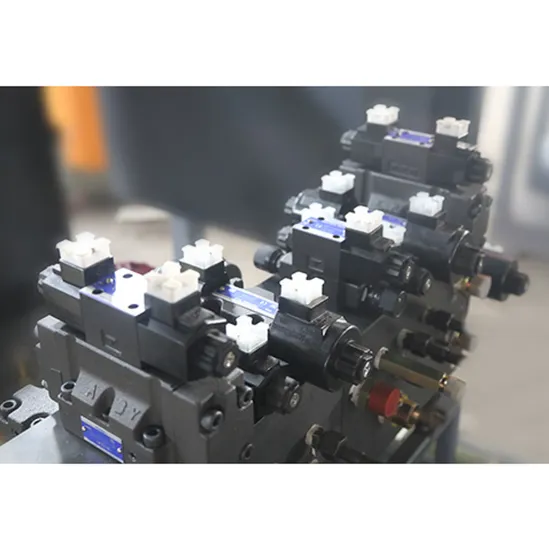

| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
