Customization: | Available |
---|---|

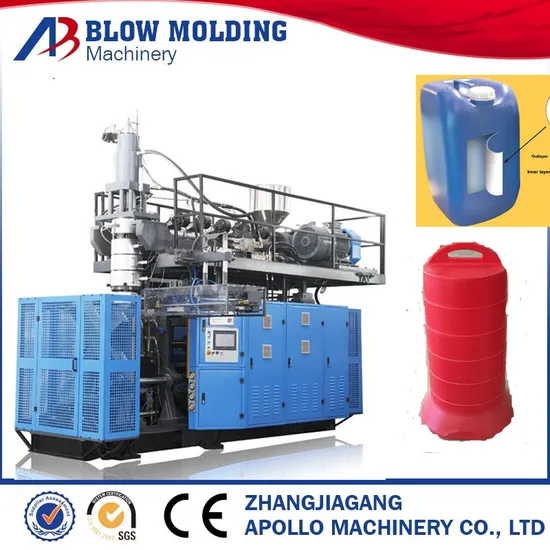

Type: | Extrusion Blow Molding Machine |
Raw Material: | PE |
Quantity: | |
---|---|
Max. Product volume | 50 liters |
Dry cycle | 450pc/h |
Screw diameter | 90mm |
Screw L/D ratio | 25 L/D |
Screw drive power | 37 KW |
Screw heating capacity | 18 KW |
No.of heating zone | 4 zones |
Output of HDPE | 130 KG/H |
Oil pump drive power | 30 KW |
Clamping force | 260 KN |
Max.size of mold | 450-1000mm |
Mold stroke | 700X950mm |
Max.die diameter | 340mm |
Die heating power | 7.6 KW |
Die heating segments | 4 zones |
Blowing pressure | 0.8mpa |
Air volume | 1.0 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 90 L/MIN |
Electronic Parts | |
Name | Brand |
Micro computer control system | Japanese MITSUBISHI |
Tempreture Controller | TAIWAN YANHUA PID |
Auxiliary Relay | OMRON |
Contactor | Schneider(France) |
Electric motor | SImens |
Power Source | MEANWELL(Taiwan) |
Transudcer | ABB |
Hydraulic Parts | |
Oil pump | HIGH-TECH(Taiwan) |
Valve | YUKEN(Japan) |
Oil pump and connection | YUKEN(Japan) |
Swaled part | HALLITE |
Air Control System | |
Cylinder | AIRTAC |
Air Wave | AIRTAC |
