5L HDPE Jerry Can Extrusion Blow Molding Machine 1L 3L Plastic Jerry Can Production Blow Molding Machine

5L HDPE Jerry Can Extrusion Blow Molding Machine 1L 3L Plastic Jerry Can Production Blow Molding Machine

Name: 5L HDPE Jerry Can Extrusion Blow Molding Machine 1L 3L Plastic Jerry Can Production Blow Molding Machine
Rating: 5.0 (92 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	HDPE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB75

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Station

Single or Double

Die Head

Single Head/Double Head/3 Head

Max Bottle Size

5L

Screw Diameter

75mm

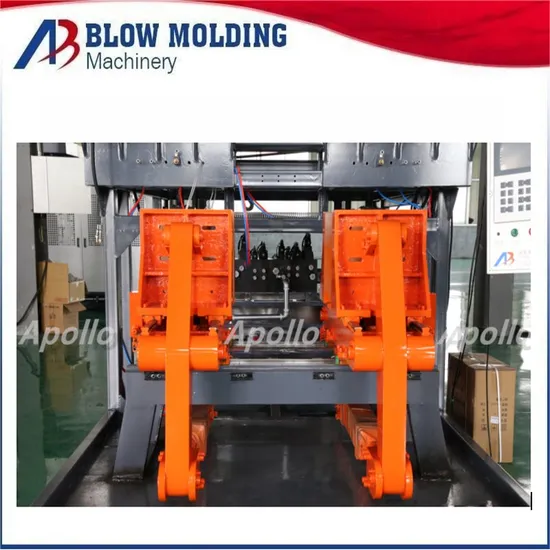

Clamping System

Toggle Type

PLC

Mitsubishi or Siemens

Electricals

Schneider

Invertor

Taiwan Delta

Hydraulic

Japan Yuken

Relay

Japan Omron

Transport Package

Film Packaging

Specification

ABLB75II

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

8477301000

Production Capacity

180~450PCS/H

Product Description

High quality blow molding machine 1L ~ 5L

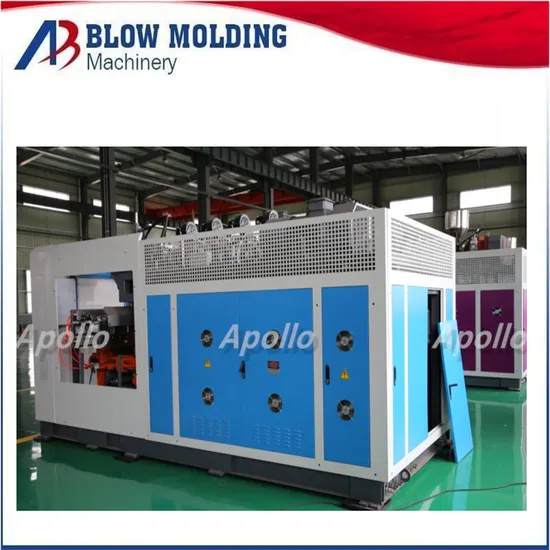

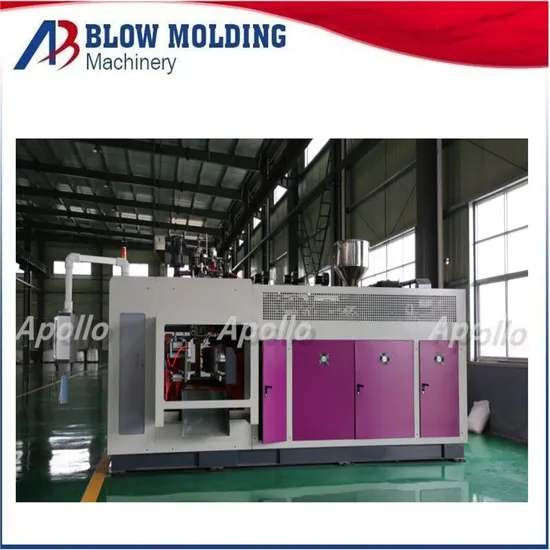

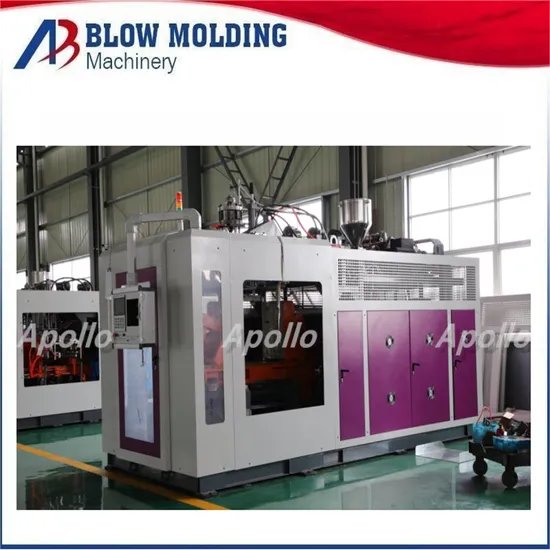

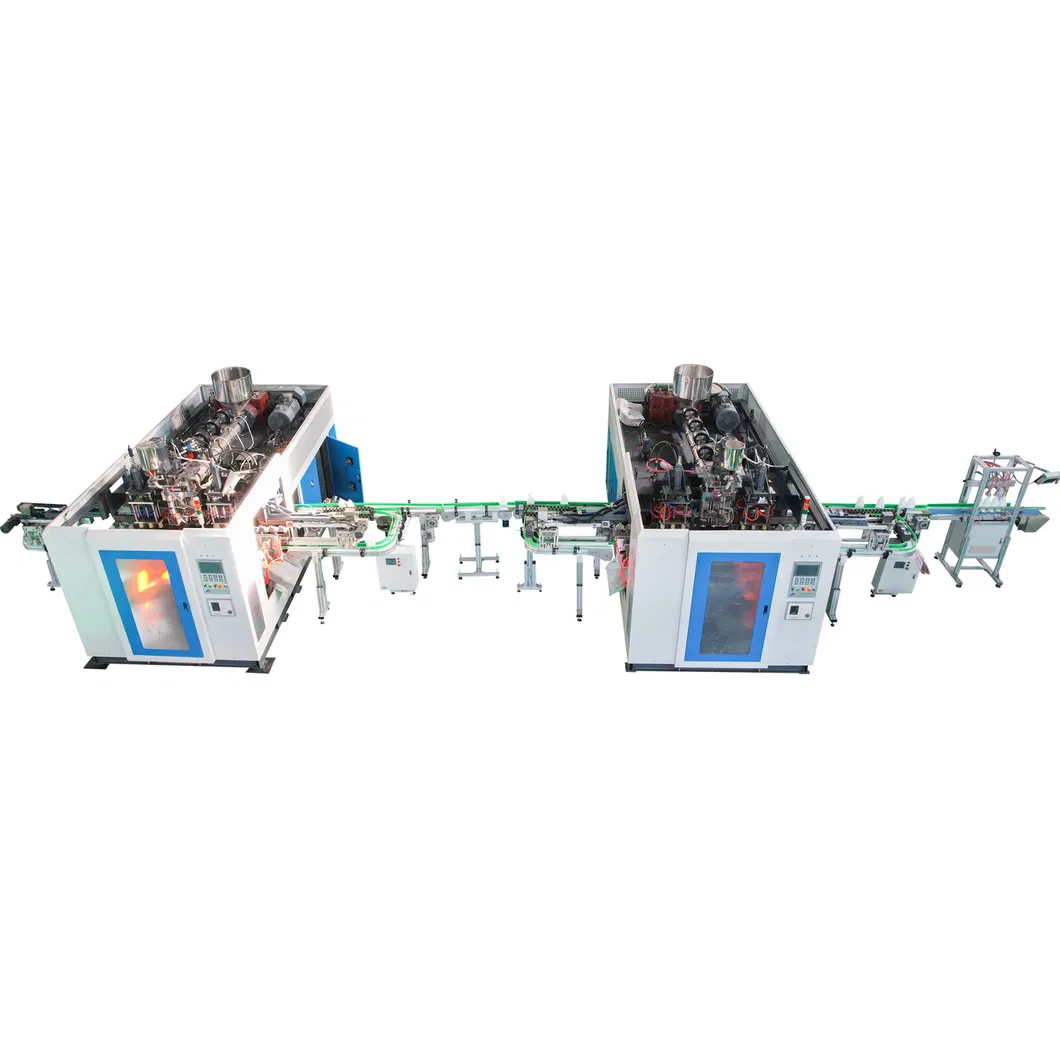

ABLB75II (Double station single die head)
5L HDPE Jerry Can Extrusion Blow Molding Machine 1L 3L Plastic Jerry Can Production Blow Molding Machine

ABLB75 II blow moulding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles ,cosmetic bottles, and other plastic containers not over 7.5L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on, plastic containers and bottles in all shapes are available, the max.product volume is up to 7.5L.
(2)Double station single die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.

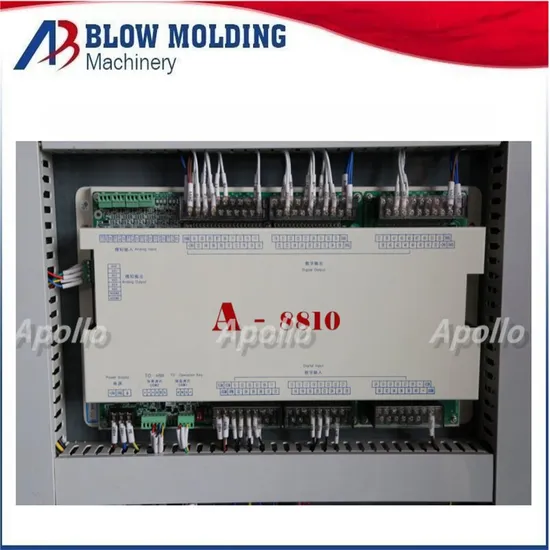

(7)Auto lubricant system controlled by PLC.

Max. Product Volume	8 liters
Dry cycle	800x2 pc/h
Screw diameter	75 mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	7 KW
No. of heating zone	4 zone
Output of HDPE	100 KG/H
Oil pump drive power	7.5 KW
Clamping force	80 KN
Max. size of mold	400×450 MM
Template size	380×500 MM
Mold stroke	148-568 MM
Max.die diameter	160 MM
Blowing pressure	0.6 MPA
Air volume	0.8m 3 /min
Cooling water pressure	0.3 MPA
Water consumption	80 L/MIN
Size of machine	3.8×2.2×2.8 L×W×H
Weight of machine	8 ton
