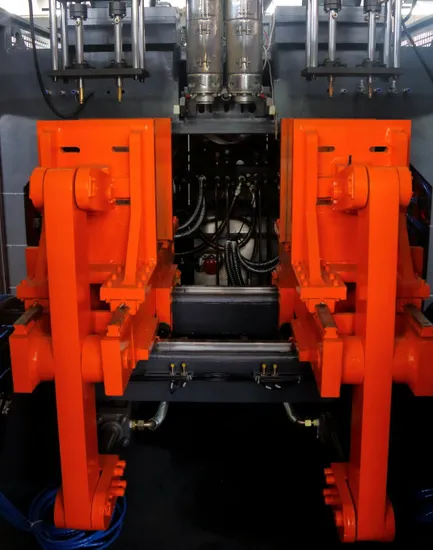

Automatic bottle making machine
Model No.: ABLB75(Double station single die head)

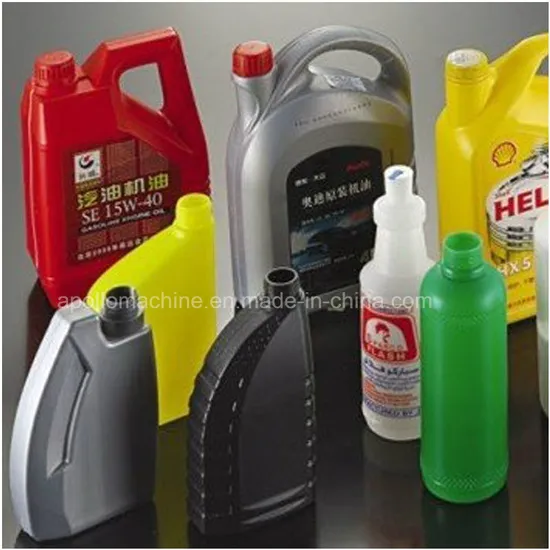

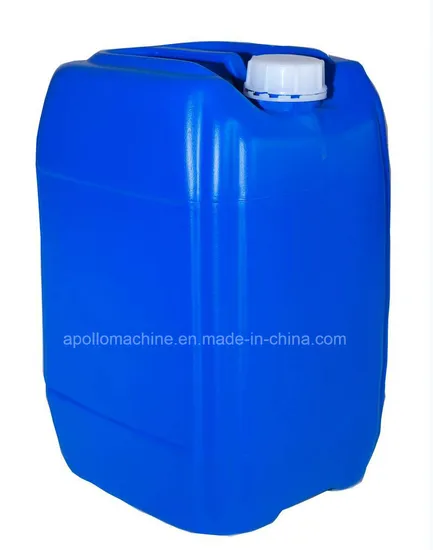

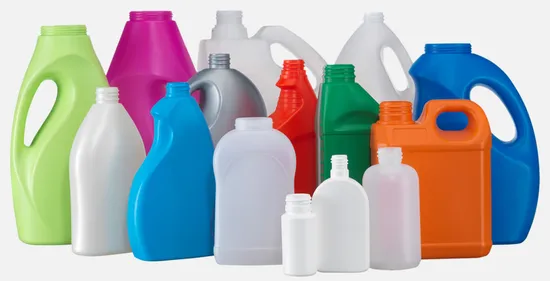

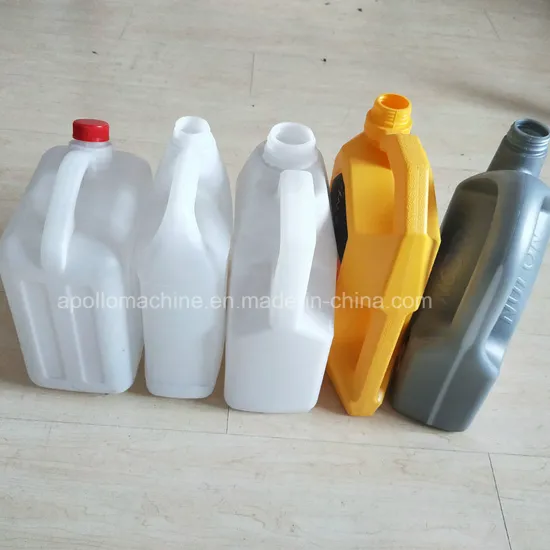

ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.

The features of this machine:

(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.





Technical Parameters: ( ABLB75II)
Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on
Max volume5L
Output capacity180~200 pcs/h
Size3.8×2.3×2.5(M)
Weight4.8T
systemSpecificationParametersNote
Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
ReducerHard finishing,High intension,Low noise reducer
Screw75mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization100Kg/HHDPE
Heating Zone3-4 Aluminum HeaterAutomatic heating
Heating power8KW/H
Extrusion MotorThree phase asynchronous motor (380V,50HZ) 22kw
Cooling Fan3-4zone         Automatic cooling



• Blowing device: with upper blowing type
• Hydraulic system: The whole hydraulic system adopts world-famous brand Die head: Center-feed die head
• Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
• Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
• controlling components and proportional controlling circle.
