Plastic Bottle Blow Molding Machines/Plastic Making Machines

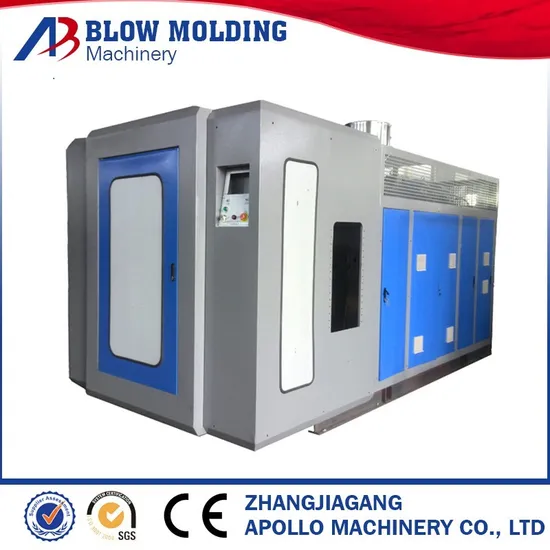

Plastic blow molding machine ABLB55II is mainly designed for making various kinds of plastic containers such as: Oil bottles, lubricant bottles, detergent bottles, cosmetic bottles, plastic balls so on. Double station and double die head design make the output higher and more efficient.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 1L.
(2)Double station double die design, stable and higher output capacity.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
| Max. Product volume | 1liters |
| Out put capacity | 480~650pcs/h |
| Screw diameter | 55mm |
| Screw L/D ratio | 24L/D |
| Screw drive power | 15KW |
| Screw heating capacity | 5KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 60KG/H |
| Oil pump drive power | 7.5KW |
| Clamping force | 45KN |
| Max.size of mold | 148-508mm |
| Mold stroke | 320X 360mm |
| Max.die diameter | 140mm |
| Blowing pressure | 0.6mpa |
| Air Volume | 0.5M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 40L/MIN |
| Size of Machine | 2.9x1.5x2.5m |
| Weight of machine | 4.5 ton |
