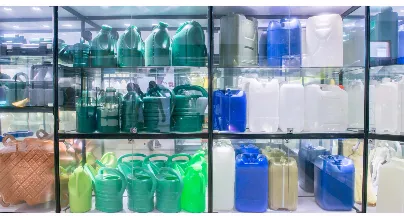

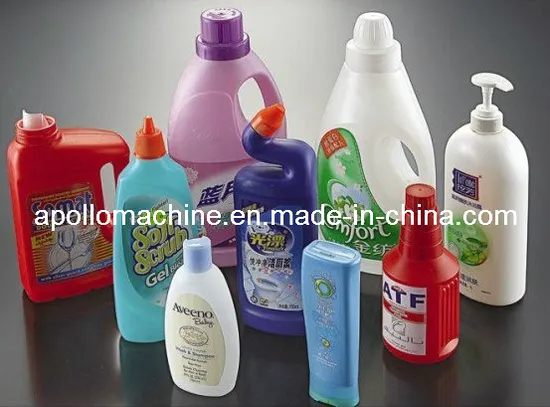

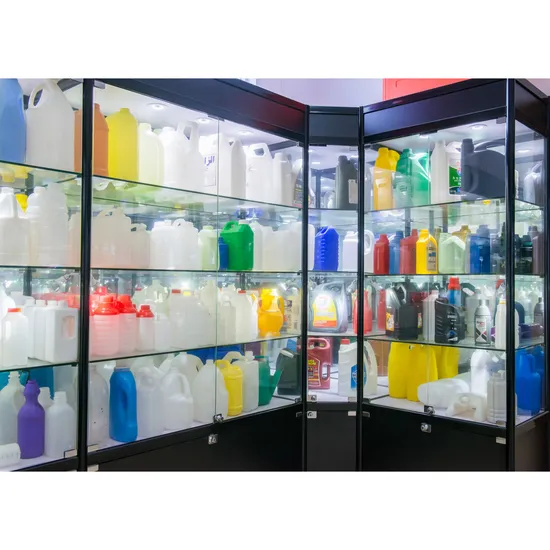

1~5L HDPE detergents shampoo liquid soaps bottles jerry cans blow molding machine(ABLB65II)
Plastic blow moulding machine:

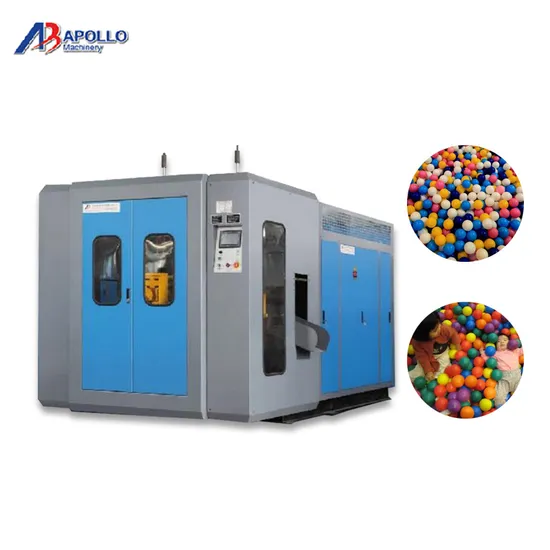

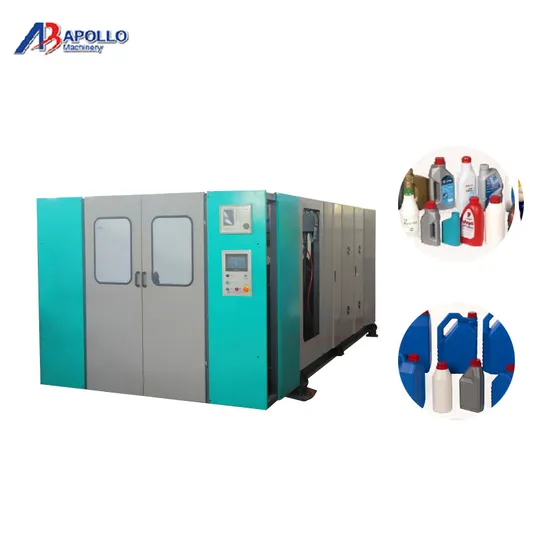

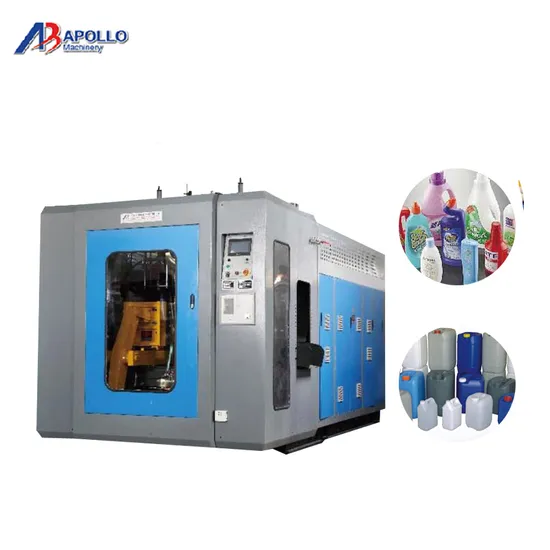

ABLB65II full automatic blow molding machine produce bottles from 1 to 5L. It is suitable for PP, PE, HDPE, PET, ABS, PVC and so on. Precision design of heater ensures even heating for getting perfect plastic products. Double station design is suitable for mass production to meet your production request in big quantity.
Main technical parameters: Features: (ABLB65II) Max. Product volume: 5 liters
Dry cycle: 800PC/h
Screw diameter: 65mm
Screw L/D ratio: 24 L/D
Screw drive power: 18 KW
Screw heating capacity: 5KW
No. Of heating zone: 3/4 zones
Output of HDPE: 80 KG/H
Oil pump drive power: 7.5KW
Clamping force: 65 KN
Max. Size of mold: 148-450mm
Mold stroke: 400X450mm
Max. Die diameter: 160mm
Blow pressure: 0.6mpa
Air volume: 0.8M³ /MIN
Cooling water pressure: 0.3mpa
Water consumption: 80 L/MIN.
The main component of the machine: | Electronic Parts |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN REGION MEANWELL |
| Transducer | ABB |
| Hydraulic Parts |
| Name | Trader |
| Oil pump | TAIWAN REGION HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
