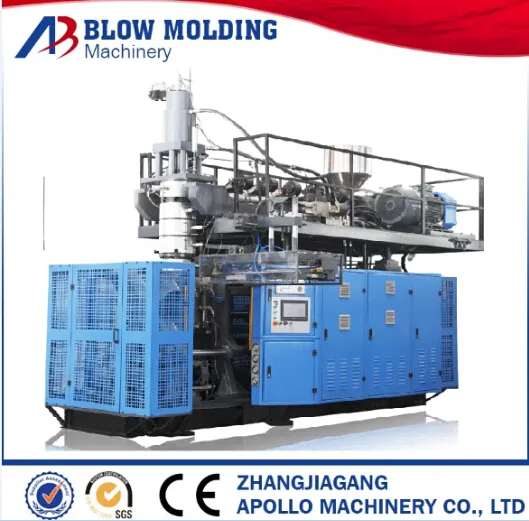

30-60L Drum Blow Molding Machine

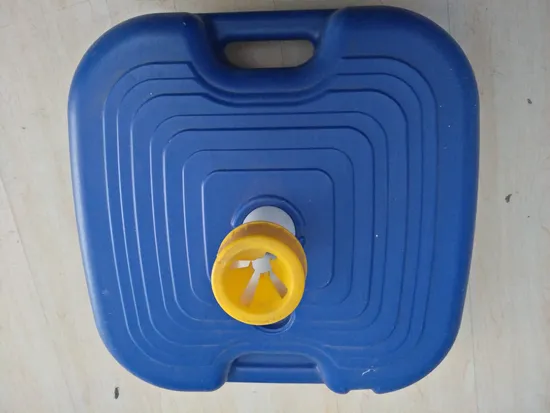

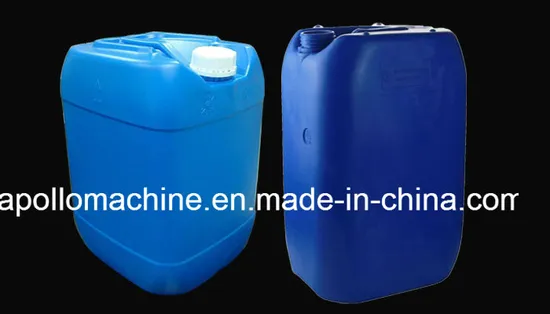

ABLD90 plastic drum making machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys, tool boxes and other plastic containers not over 50L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 50L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

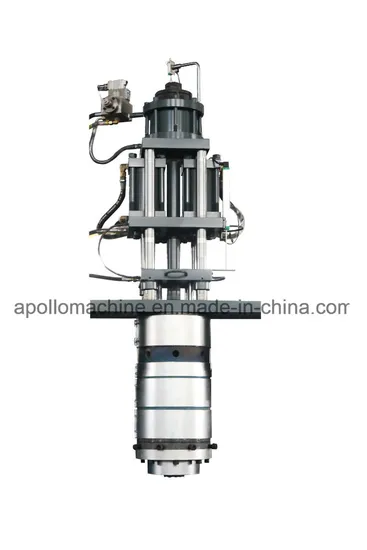

(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.

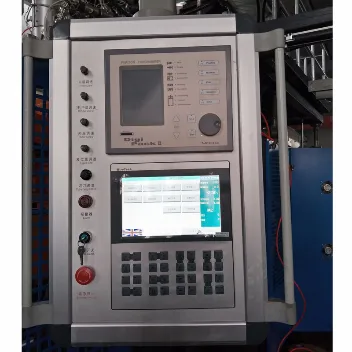

(7)Auto lubricant system controlled by PLC.
| Max. Product volume | 60 liters |
| Output capacity | 60~90pc/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 25 L/D |
| Screw drive power | 37 KW |
| Screw heating capacity | 18 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 130 KG/H |
| Oil pump drive power | 30 KW |
| Clamping force | 260 KN |
| Max.size of mold | 700X950mm |
| Mold stroke | 450-1000mm |
| Max.die diameter | 340mm |
| Die heating power | 7.6 KW |
| Die heating segments | 4 zones |
| Blowing pressure | 0.8mpa |
| Air volume | 1.0 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 90 L/MIN |
