| Max. Product volume | 8 L |
| Out put capacity | 750*2 pcs/h |
| Screw diameter | 75MM |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 7-8 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100 KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 80 KN |
| Max.size of mold | 400*430 MM |
| Mold stroke | 170-520 MM |
| Max.die diameter | 170 MM |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 80 L/MIN |
| Size of Machine | 4.2x2.2x2.7 m |
| Weight of machine | 7.5 Ton |
| Electronic Parts |
| Name | Brand |
| Micro computer control system | Japanese MITSUBISHI |
| Tempreture Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| Contactor | Schneider(France) |
| Electric motor | SImens |
| Power Source | MEANWELL(Taiwan) |
| Transudcer | ABB |
| Hydraulic Parts |
| Oil pump | HIGH-TECH(Taiwan) |
| Valve | YUKEN(Japan) |
| Oil pump and connection | YUKEN(Japan) |
| Swaled part | HALLITE |
| Air Control System |
| Cylinder | AIRTAC |
| Air Wave | AIRTAC |

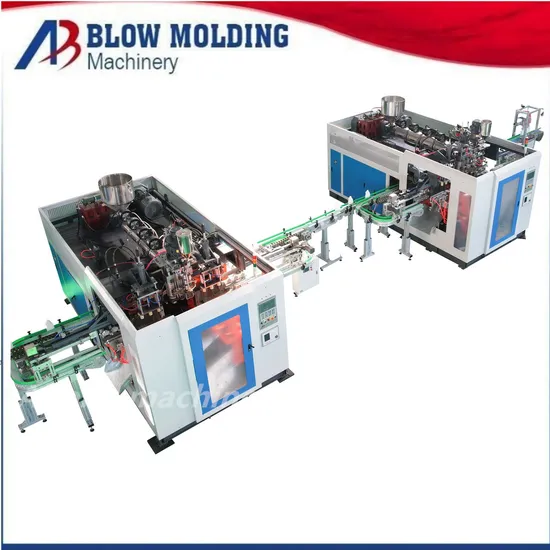

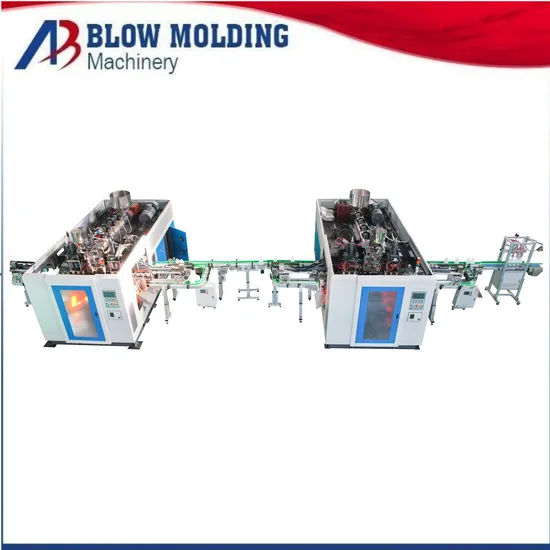

ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 8L. This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
