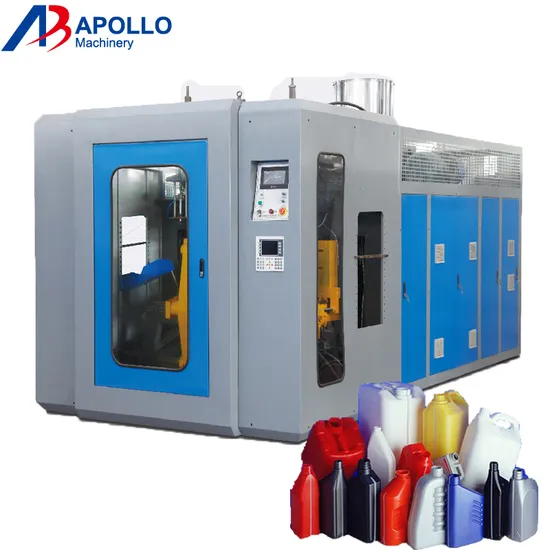

Plastic PE Litchi Bottle Production Extrusion Blow Molding Machine
Product Description

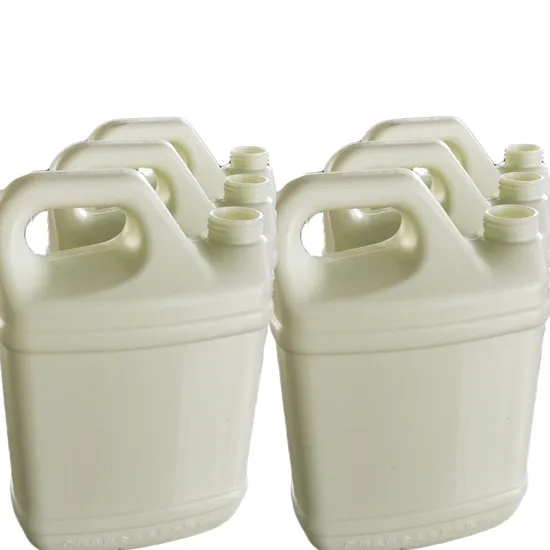

ABLB75 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
electronic parts |
|
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts |
|
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system |
|
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | FESTO |
| Max. Product volume | 8 liters |
| Output capacity | 120pcs/h |
| Screw diameter | 75mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 6 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 78KN |
| Max.size of mold | 188-600mm |
| Mold stroke | 400 X 450mm |
| Max.die diameter | 180mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.7 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 60 L/MIN |
| Size of Machine | 3.6x1.8x2.8m |
| Weight of machine | 6.3 ton |
