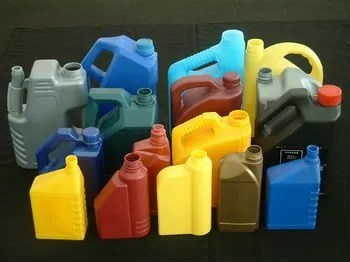

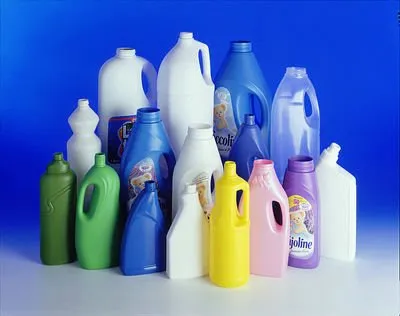

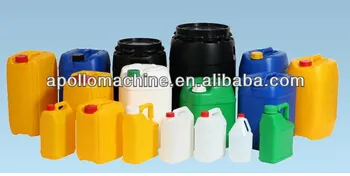

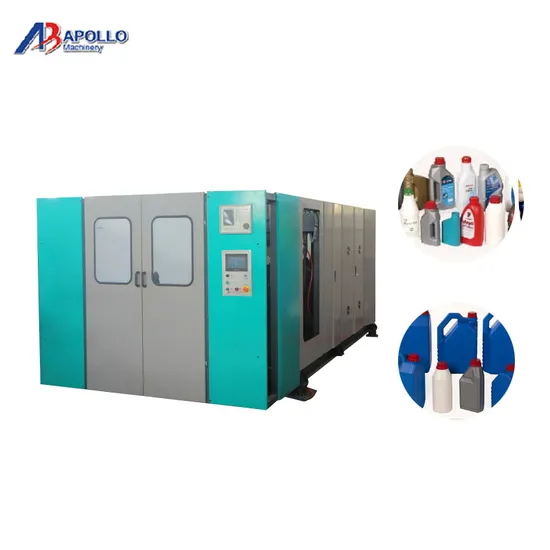

Auto plastic blow moulding machine ABLB65II This type of machine is suitable to produce different shapes of plastic bottles from 500ml to 4L.
Adopt Mitsubishi PLC from Japan
Contactor use Schneider from France
Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan, China to ensure the quality of the machine.
The technical parameter of the machine: | Max. Product volume | 4 liters |
| Dry cycle | 800X2pc/h |
| Screw diameter | 65mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 5.7 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 80 KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 45 KN |
| Max.size of mold | 148-508mm |
| Mold stroke | 320X360mm |
| Max.die diameter | 140mm |
| Blow pressure | 0.6mpa |
| Air volume | 0.7 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 65 L/MIN |
The main components of the machine. ( ABLB65II ) | electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | Japan YUKEN |
| Valve | Japan YUKEN |
| Oil pump and connection | Japan YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
