| Customization: | Available |
|---|---|
| Warranty: | One Year |
| Type: | Extrusion Blow Molding Machine |
| Quantity: | |
|---|---|

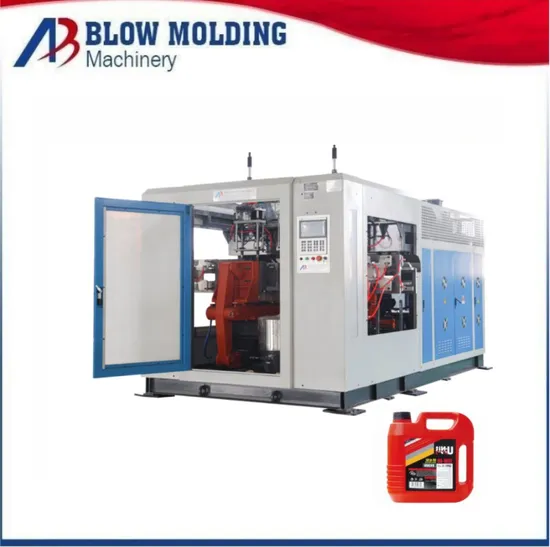

ABLB65 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.
The features of this machine:
| Max. Product volume | 8 L |
| Out put capacity | 750*2 pcs/h |
| Screw diameter | 75MM |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 7-8 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100 KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 80 KN |
| Max.size of mold | 400*430 MM |
| Mold stroke | 170-520 MM |
| Max.die diameter | 170 MM |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 80 L/MIN |
| Size of Machine | 4.2x2.2x2.7 m |
| Weight of machine | 7.5 Ton |
