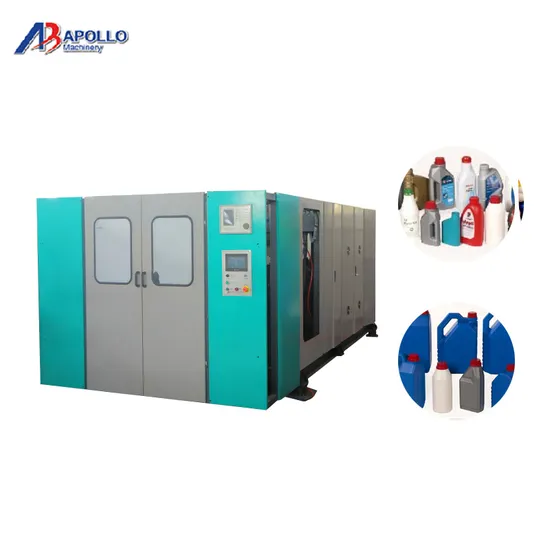

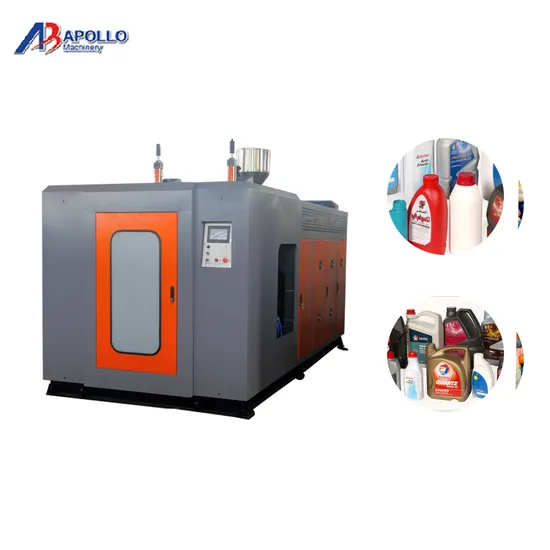

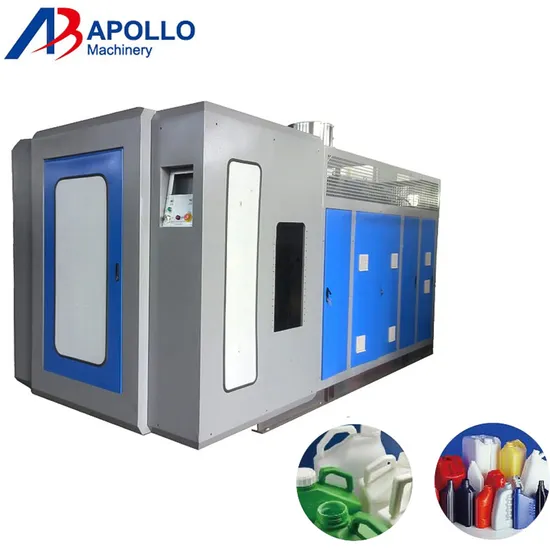

Automatic bottle making machine
Model No.: ABLB75(Double station single die head) ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.
The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Technical Parameters: ( ABLB75II) Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on
Max volume5L
Output capacity180~200 pcs/h
Size3.8×2.3×2.5(M)
Weight4.8T
systemSpecificationParametersNote
Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
ReducerHard finishing,High intension,Low noise reducer
Screw75mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization100Kg/HHDPE
Heating Zone3-4 Aluminum HeaterAutomatic heating
Heating power8KW/H
Extrusion MotorThree phase asynchronous motor (380V,50HZ) 22kw
Cooling Fan3-4zone Automatic cooling
| Name | Units | ABLB75II |
| Max.product volume | L | 8 |
| Dry cycle | PC/H | 800×2 |
| Screw diameter | MM | 75 |
| Screw L/D ratio | L/D | 24 |
| Screw drive power | KW | 22 |
| Screw heating capacity | KW | 7 |
| No. of heating zone | ZONE | 4 |
| Output of HDPE | KG/H | 100 |
| Oil pump drive power | KW | 7.5 |
| Clamping force | KN | 80 |
| Max.size of mold | MM | 400×420 |
| Template size | MM | 380×420 |
| Mold stroke | MM | 170-520 |
| Max. die diameter | MM | 170 |
| Blowing pressure | MPA | 0.6 |
| Air volume | M3/MIN | 0.8 |
| Cooling water pressure | MPA | 0.3 |
| Water consumption | L/MIN | 80 |
| Size of machine | L×W×H | 4.4×2.2×2.7 |
| Weight of machine | TON | 8 |
The main components of the machine. ( ABLB75II ) | Electronic Parts | |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN REGION MEANWELL |
| Transducer | ABB |
| Hydraulic Parts | |
| Name | Trader |
| Oil pump | TAIWAN REGION HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
If you want to know more about details, please contact us!
