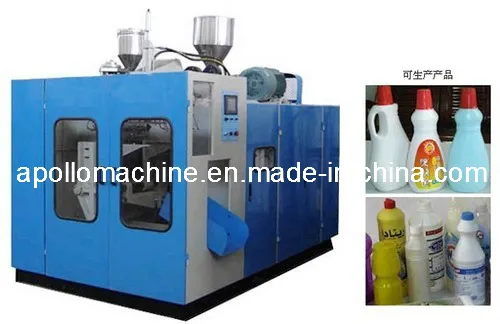

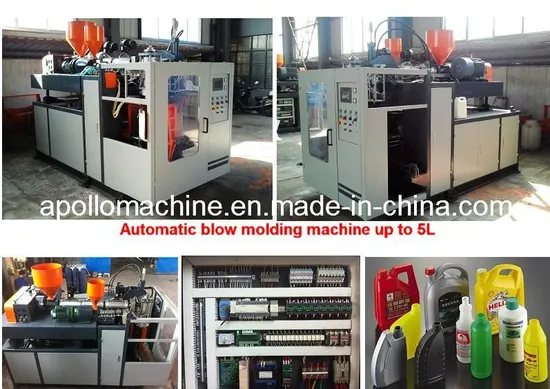

Automatic blowing machine: ABLB55 is designed according to CE standard. Adding a safe door and infrared signal lamp to avoid the happen of accident. This machine looks neat and nice. And it is widely used to produce kinds of cosmetic bottles, medical bottles, milk bottles, shampoo bottles and so on.
Related technical parameter: Max. Product volume: 5 liters
Dry cycle: 1000 PC/h
Screw diameter: 55 mm
Screw L/D ratio: 24 L/D
Screw drive power: 15 KW
Screw heating capacity: 5-6 KW
No. Of heating zone: 3 zones
Output of HDPE: 60 KG/H
Oil pump drive power: 7.5 KW
Clamping force: 45 KN
Max. Size of mold: 300×370 mm
Mold stroke: 150-500 mm
Max. Die diameter: 170 mm
Blowing pressure: 0.6 mpa
Air volume: 0.6 M³ /MIN
Cooling water pressure: 0.3 mpa
Water consumption: 50 L/MIN
The main component of the machine: | Electronic Parts |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts |
| Name | Trader |
| Oil pump | TAIWAN REGION,HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
