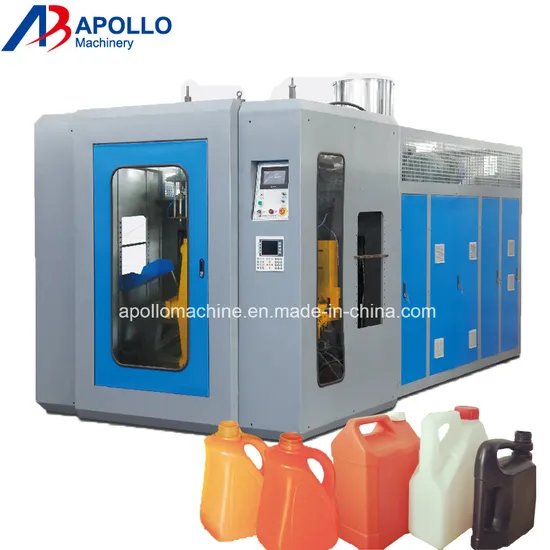

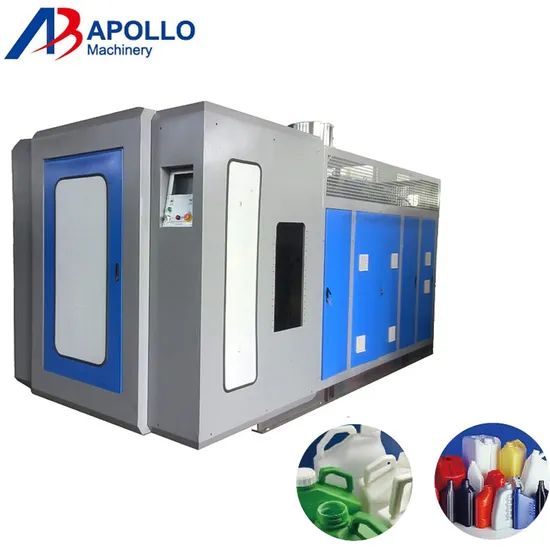

Automatic extrusion blow molding machine Model No.:
ABLB55II (double station double die head)
This type of blow molding machine ABLB55II can produce bottle, kettle, can, balls etc. The machine is especially designed for producing with material PE, PVC, PP so on. The productive capacity can reach 480~650PCS/hr.
Automatic extrusion blow molding machine ABLB55II
CE certification About us

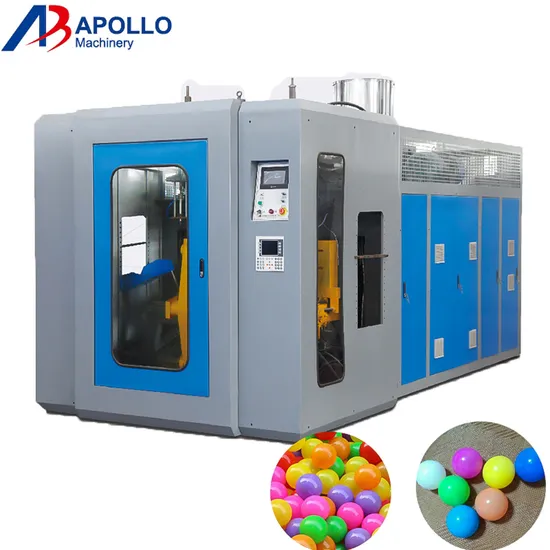

Shampoo bottles Plastic balls
Main parts of Machine
Explanation
Mould Open and Close machanism
Double station
Open and close the mould
Oil Pump
Oil pump From Taiwan JinShun /YUKEN drive the machine
Computer control system (PLC)
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen
Screw and fan
Screw diemeter
55mm
Fan used to cool the screw
The main components of the machine. ( ABLB55II) | Name | Units | ABLB55II |
| Max.product volume | L | 2 |
| Dry cycle | PC/H | 950×2 |
| Screw diameter | MM | 55 |
| Screw L/D ratio | L/D | 24 |
| Screw drive power | KW | 15 |
| Screw heating capacity | KW | 5 |
| No. of heating zone | ZONE | 3 |
| Output of HDPE | KG/H | 60 |
| Oil pump drive power | KW | 5.5 |
| Clamping force | KN | 40 |
| Max.size of mold | MM | 250×320 |
| Template size | MM | 290×320 |
| Mold stroke | MM | 150-500 |
| Max. die diameter | MM | 140 |
| Blowing pressure | MPA | 0.6 |
| Air volume | M3/MIN | 0.6 |
| Cooling water pressure | MPA | 0.3 |
| Water consumption | L/MIN | 60 |
| Size of machine | L×W×H | 2.8×1.9×2.3 |
| Weight of machine | TON | 4.5 |
PAYMENT:
30% down payment paid at signing this contract by T/T, and the balance of 70% paid before shipment by T/T or irrevocable L/C.
DELIVERY:
Delivery no later than 40 days, after we received the deposit.
The main components of the machine( ABLB55 II ): | electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
