| Customization: | Available |
|---|---|
| Type: | Extrusion Blow Molding Machine |
| Raw Material: | HDPE |
| Quantity: | |
|---|---|

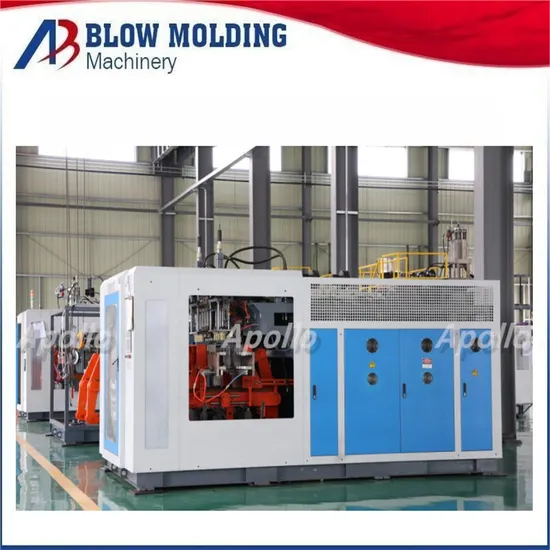

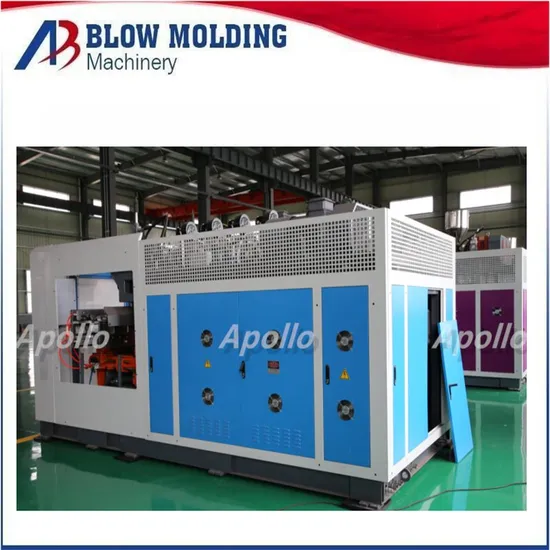

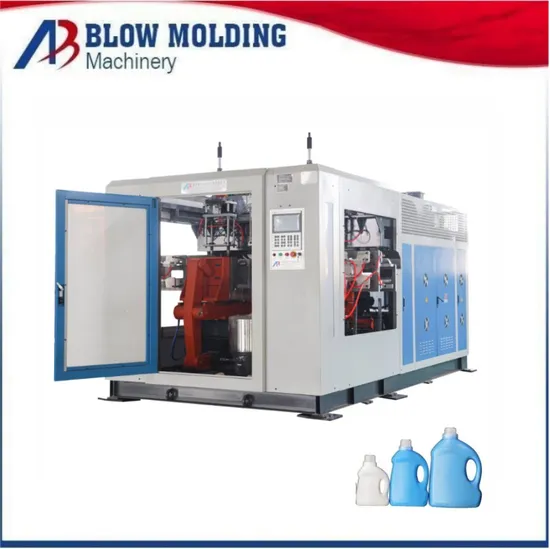

ABLB65II double station single die head
1.PE PPsea balls plastic bottle making machine
2.European technology and imported spare parts
3.Easy to operate and maintain
4.CE proved
5.world-famous brand
Technical Parameters: ( ABLB65II)
| Max. Product volume | 4liters |
| Screw diameter | 65mm |
| Screw L/D ratio | 24L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 5.7 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 80KG/H |
| Oil pump drive power | 5.5 KW |
| Clamping force | 45KN |
| Max.size of mold | 320 X 360mm |
| Mold stroke | 148-508mm |
| Max.die diameter | 140mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.7 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 65L/MIN |
| Size of Machine | 3.0x2x2.7m |
| Weight of machine | 6.5 ton |
ABLB65II double station single die head
1.PE PPsea balls plastic bottle making machine
2.European technology and imported spare parts
3.Easy to operate and maintain
4.CE proved
5.world-famous brand
Technical Parameters: ( ABLB65II)
| Max. Product volume | 4liters |
| Screw diameter | 65mm |
| Screw L/D ratio | 24L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 5.7 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 80KG/H |
| Oil pump drive power | 5.5 KW |
| Clamping force | 45KN |
| Max.size of mold | 320 X 360mm |
| Mold stroke | 148-508mm |
| Max.die diameter | 140mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.7 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 65L/MIN |
| Size of Machine | 3.0x2x2.7m |
| Weight of machine | 6.5 ton |
