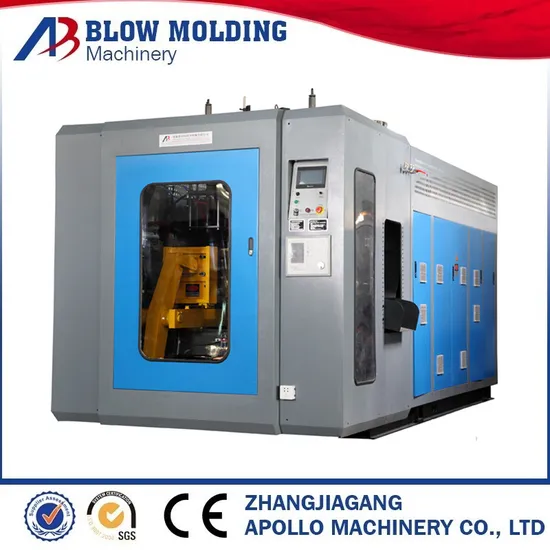

100 Ml~5 L PE Bottles Jars Jerry Cans Blow Molding Machine (BSM65)

Name: 100 Ml~5 L PE Bottles Jars Jerry Cans Blow Molding Machine (BSM65)
Rating: 5.0 (92 reviews)

Customization:	Available
Warranty:	1year
Type:	Extrusion Blow Molding Machine

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB65

Raw Material

HDPE

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008, QS, GMP

After-sales Service

Yes

Max Bottles This Machine Can Make

5L

Suitable Raw Material

HDPE, PP, PS, EVA, TPU, PVC, ABS, PETG, So on

Range

Plastic

Max Volume

5

Transport Package

Film Packing

Specification

ISO9000

Trademark

Apollo

Origin

China

HS Code

84773000

Production Capacity

150~300PCS/H

Product Description

CE approved 1L 5L HDPE bottles jars jerry cans automatic blow moulding machine

Extrusion blow moulding machines

Detergents liquid soap bottles blow molding machines

Automatic bottles jars jerry cans kettles gallons making machine

Plastic Bottles Blow Moulding Machines

SPECIFICATIONSUNITSBSM65I SERIERS

Max container capacity L 5

Number of die heads Set 1

Machine dimension (L*W*H) M 3 *1.9 *2.4

Total weight Ton 3.5

CLAMPING UNIT

Clamping force KN 68

Platen opening stroke mm 150-500

Platen size mm 320*360

Max mould size (W*H) mm 350*370/238*600

Mould thickness mm 153-500

POWER

Max drive KW 32

Total power KW 32

Fan power for screw KW 0.14*3

Air pressure Mpa 0.7

Air consumption M3/min 0.9

Average energy consumption KW 17

EXTRDER UNIT

Screw diameter mm 65

Screw L/D ratio L/D 24

Plasticizing capacity Kg/hour 70

Number of heating zone Zone 3

Extruder heating power KW 13.8

Extruder driving power KW 15

DIE HEAD

Number of heating zone Zone 3

Power of die heating KW 5.7

Max die pin diameter mm 135

Center distance of double die mm 160

Center distance of tetra-die mm 85

TEMPERATURE CONTROL MODULEMITSUBISHI Japan

HYDRAULIC PUMP HAITEKE TAIWAN

HYDRAULIC VALVE YUKEN JAPAN

HYDRAULIC OIL SEAL VALQUA JAPAN

INTERMEDIATE RELAY OMRON JAPAN

INVERTER DELTA TAIWAN

PNEUMATIC VALVE AIRTAC TAIWAN

HUMAN-MACHINE TOUCH SCREEN RICHO TAIWAN

PNEUMATIC SWITCH & CONTACTOR LG KOREA

HYDRAULIC MOTOR & SCREW MOTORENERGETIC-OXCHINA

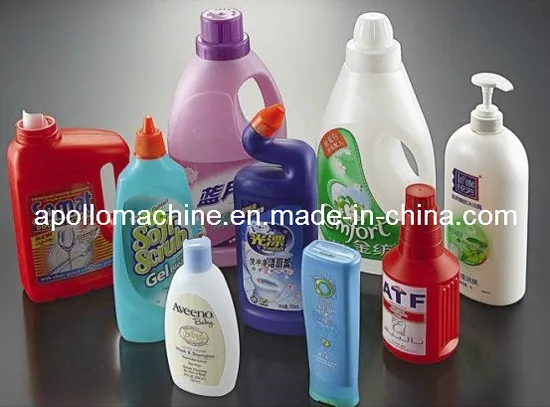

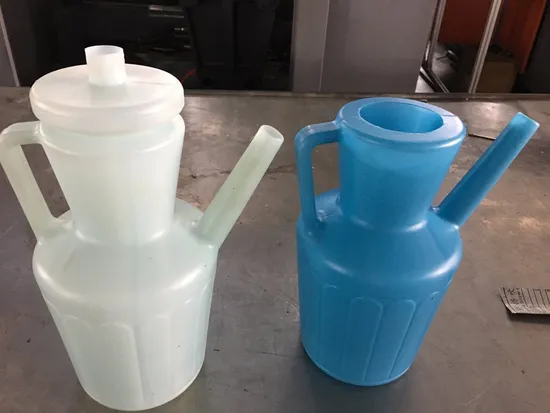

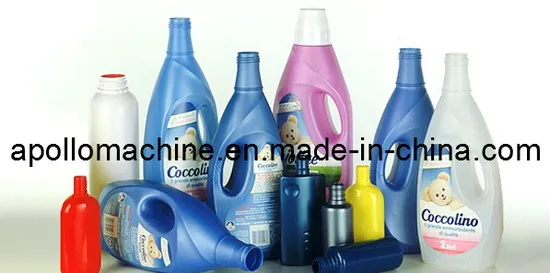

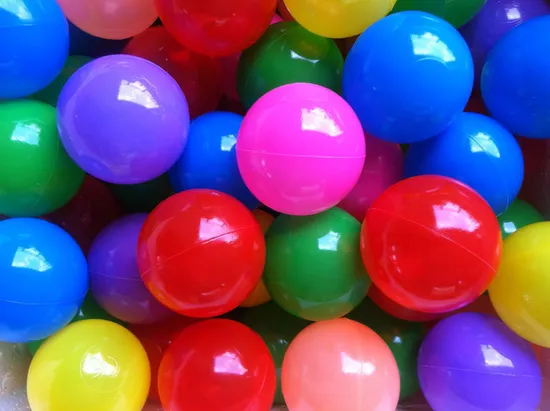

Suitable for:

Detergents bottles, liquid soap bottles, shampoo cosmetic bottles, chemical bottles, food packaging jars,

jerry cans, oil bottles, milk bottles, pesticide bottles, kettles, water gallons, tanks, kettles, balls, toys ,daily

household products so on.

100 Ml~5 L PE Bottles Jars Jerry Cans Blow Molding Machine (BSM65)

MITSUBISHI PLC,SCHNEIDER COTACTOR,DELTA INVERTER,OMRON RELAY

MOTOR FROM SIEMENS MOTOR CO.,LTD (GERMAN & CHINA CORP.)

ADDITIONAL SCREW WAS ADDED FOR LEVER LINE INDICATOR SYSTEM

FULL COLOR TOUCH SCREEN (TAIWAN)

TECHNICAL DATA

MOOG system (JAPAN MOOG)
100 Ml~5 L PE Bottles Jars Jerry Cans Blow Molding Machine (BSM65)

(MOOG parison control system are for precision thickness control, if you need this system need to add 10,500 USD)

100 Ml~5 L PE Bottles Jars Jerry Cans Blow Molding Machine (BSM65)
