Customization: | Available |
---|---|
Warranty: | One Year |
Type: | Extrusion Blow Molding Machine |
Quantity: | |
---|---|
Company Profile
Detailed Photos
Product Description

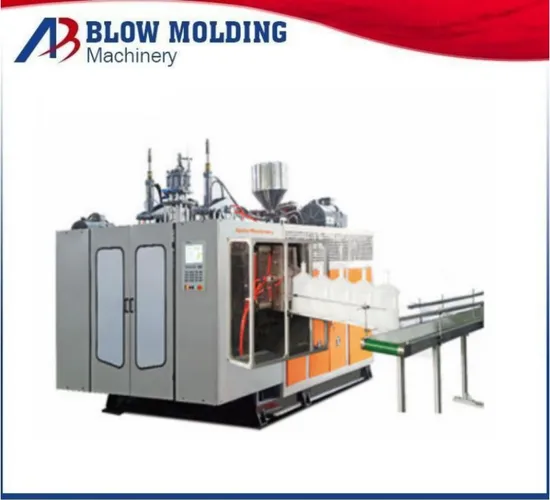

ABLB80 blow molding machine is suitable to produce 5 gallon PC bottles and containers in all shapes. We also have CE and ISO9001 certificate for you and offer engineer to your country to help you set up the machine. High quality assurance will be provided for you.
Equipped with special designed material storageProduct Parameters
Max. product volume | 5 gallon |
Output capacity | 90 pcs/h |
Screw diameter | 80mm |
Screw L/D ratio | 25 L/D |
Screw drive power | 30 KW |
Screw heating capacity | 16KW |
No. of heating zone | 4 zones |
Output of HDPE | 100 KG/H |
Oil pump drive power | 22 KW |
Clamping force | 210 KN |
Max. size of mold | 350-780mm |
Mold stroke | 550x650mm |
Max. die diameter | 280mm |
Die heating power | 5.3 KW |
Die heating segements | 4 zones |
Blowing pressure | 0.8 mpa |
Air volume | 0.8 M2/MIN |
Certifications
