Famous Brand Cheap Price Automatic Extrusion Blow Molding /Plastic Machinery

Name: Famous Brand Cheap Price Automatic Extrusion Blow Molding /Plastic Machinery
Rating: 5.0 (92 reviews)

Customization:	Available
Warranty:	One Year
Type:	Extrusion Blow Molding Machine

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB 75

Raw Material

HDPE

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Keyword

Blow Molding Machine

Range

Plastic

Name

Ablb75

Color

Customer Choose

Transport Package

Film Packing

Specification

5L

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

8477301000

Production Capacity

500PCS/H

Product Description

Famous Brand Cheap Price Automatic Extrusion Blow Molding /Plastic Machinery

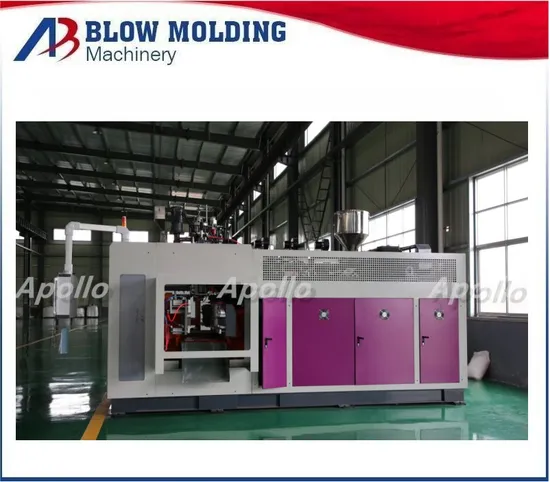

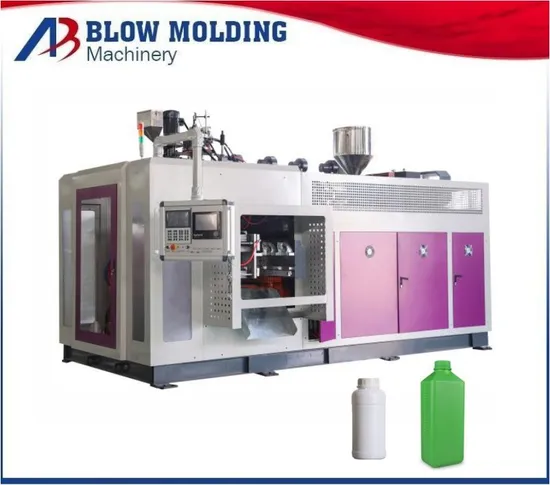

High-Speed Auto Blow Moulding Machine (ABLB75)

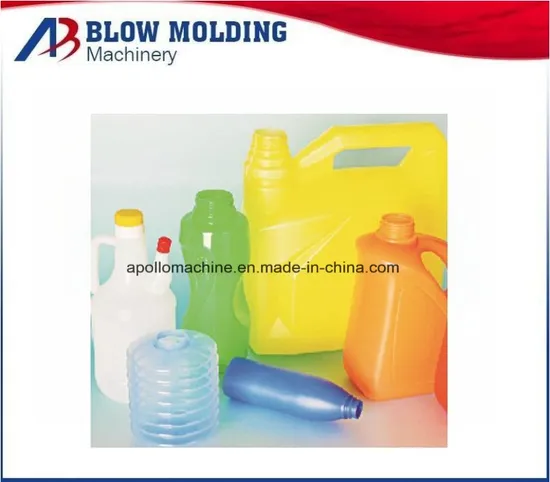

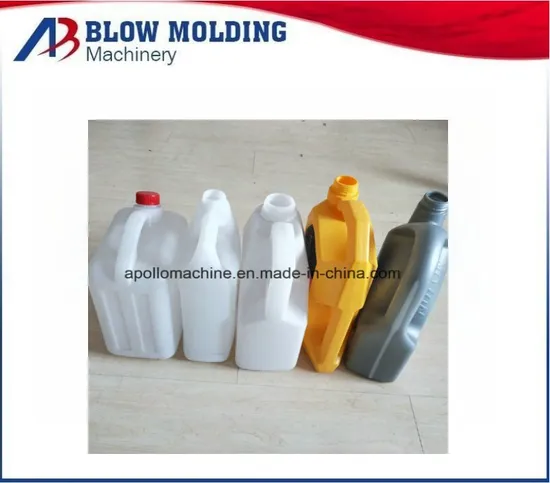

ABLB45 full automatic extrusion blow molding machine was specially designed for making plastic water bottles, medical bottles, oil bottles, plastic balls, suction tubes and other small plastic containers not over 8L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station double die design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for maintenance.

Max. Product volume	8L
Out put capacity	500~600pcs/h
Screw diameter	75mm
Screw L/D ratio	24:1 L/D
Screw drive power	10KW
Screw heating capacity	2.6KW
No.of heating zone	4zones
Output of HDPE	35KG/H
Oil pump drive power	4.8KW
Clamping force	80KN
Max.size of mold	*400430mm**
Mold stroke	170-520mm
Max.die diameter	170mm
Blowing pressure	0.6mpa
Air Volume	0.7M³/MIN
Cooling water pressure	0.3mpa
Water consumption	60L/MIN
Size of Machine	4.2x2.0x2.7m
Weight of machine	6.8ton

1. Q: -Can the machine customized only for my products?
  A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.

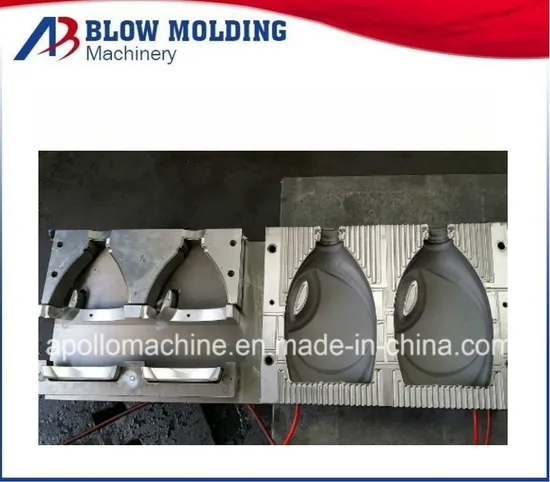

2. Q: -How about the molds ?
  A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various  for optional.

3. Q: -What is the business item for this project ?
  A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
        b. Port of Loading: SHANGHAI, CHINA.
        c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
        d. Container needed: One 20GP container.
