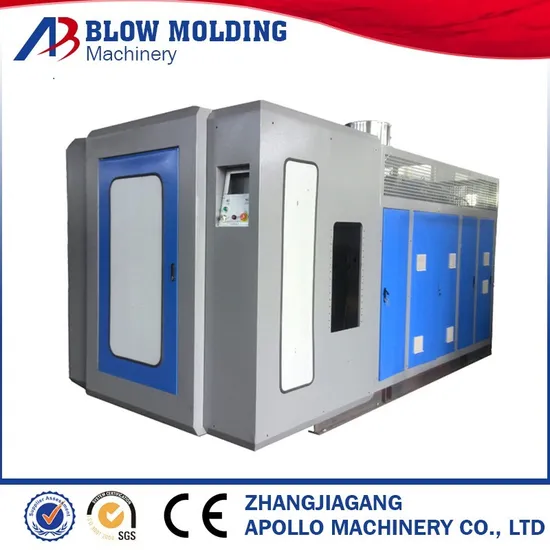

HDPE/PP Bottles Jars Jerry Cans Containers Blow Moulding Machine
HDPE Bottle making Machine (ABLB75II) Plastic blow moulding machine:
ABLB75II full automatic blow molding machine produce bottles from 2L to 7.5L. It is suitable for PP, PE, HDPE, PET, ABS, PVC and so on. Precision design of heater ensures even heating for getting perfect plastic products. Double station design is suitable for mass production to meet your production request in big quantity. Main technical parameter: Specification: | Name | ABLB 75I |
| Max. product volume | 8L |
| Dry cycle | 800PC/H |
| Screw diameter | 75MM |
| Screw drive power | 22KW |
| Screw heating capacity | 5-6KW |
| Output of HDPE | 90KG/H |
| Oli pump drive power | 7.5KW |
| Clamping force | 80KN |
| Max size of mold | 400×430MM |
| Template size | 380×420MM |
| Mold Stroke | 170-520MM |
| Blowing pressure | 0.6MPA |
| Air volume | 0.7M3/MIN |
| Cooling water pressure | 0.3MPA |
| Water consumption | 60L/Min |
| Weight of machine | 6.3TON |

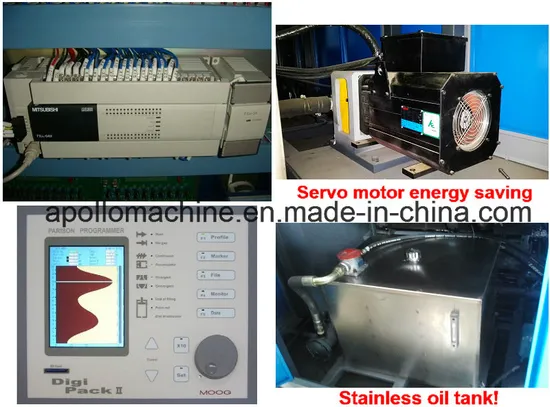

| Electronic Parts |
| Name | Brand |
| Micro computer control system | Japanese MITSUBISHI |
| Tempreture Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| Contactor | Schneider(France) |
| Electric motor | SImens |
| Power Source | MEANWELL(Taiwan) |
| Transudcer | ABB |
| Hydraulic Parts |
| Oil pump | HIGH-TECH(Taiwan) |
| Valve | YUKEN(Japan) |
| Oil pump and connection | YUKEN(Japan) |
| Swaled part | HALLITE |
| Air Control System |
| Cylinder |
AIRTAC |
| Air Wave | AIRTAC |
