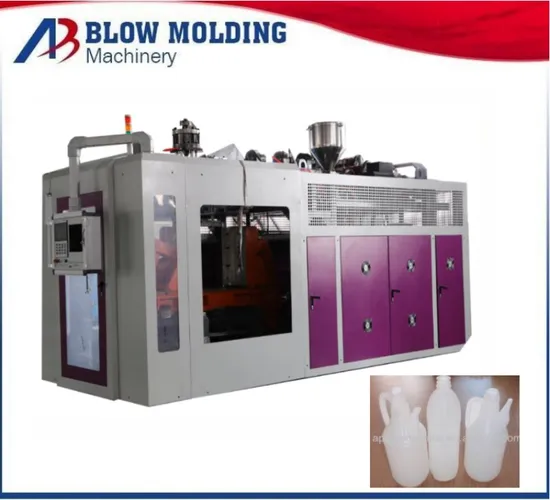

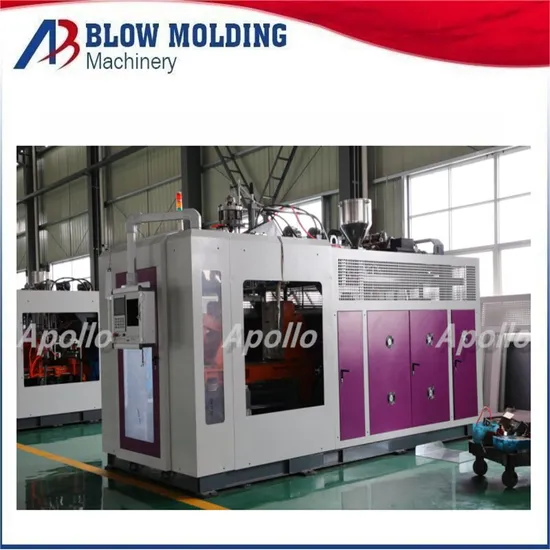

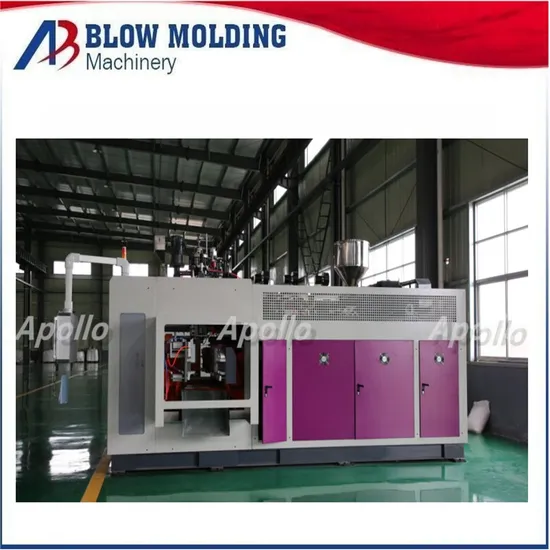

Automatic Plastic bottles jerry cans blow molding machine HDPE
Products:

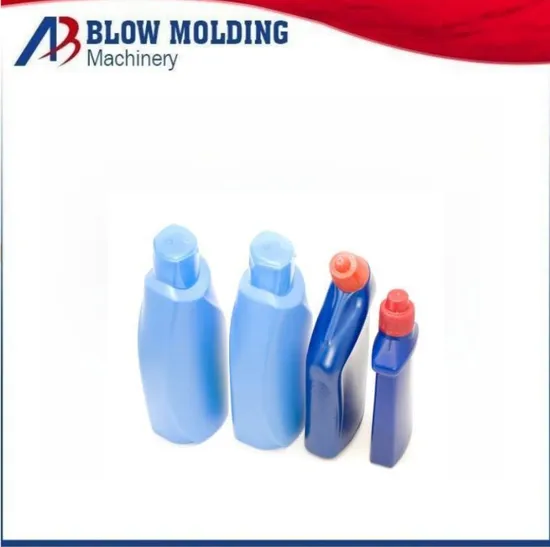

This type of machine is suitable to produce different shapes of plastic bottles from 50ml to 5L.
Adopt Mitsubishi PLC from Japan
Contactor use Schneider from France
Most of spareparts of hydraulic system and pneumatic system are imported from Japan,Korea,France and Taiwan,china to ensure the quality of the machine
Technical Parameters: ( ABLB75II )
Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 1L (3 die head)
Output capacity 720~780 pcs/h
Size 4.3×2.35×2.8(M)
Weight 8T
system Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer

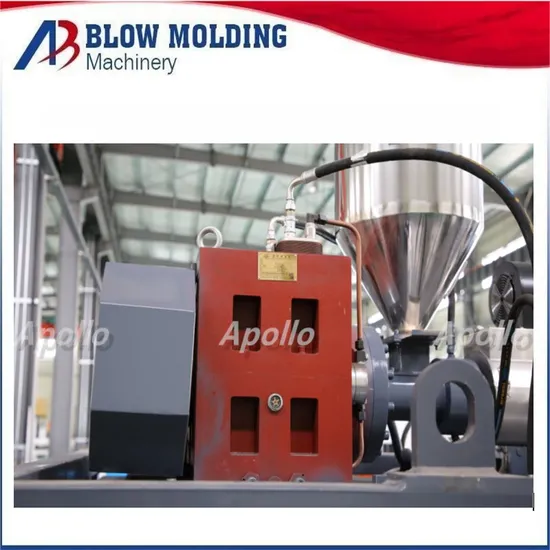

Screw 75mm,L/D ratio 24, 38CrMoALA Cooling system
Plasticization 100Kg/H HDPE
Heating Zone 3-4 Aluminum Heater Automatic heating
Heating power 7KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ)
Cooling Fan 3-4zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number 3
Center distance of die heads As per your sample
Max die mouth 90mm
Heating zone 3-4 Stainless steel heating cycle
Heating power 2~5KW

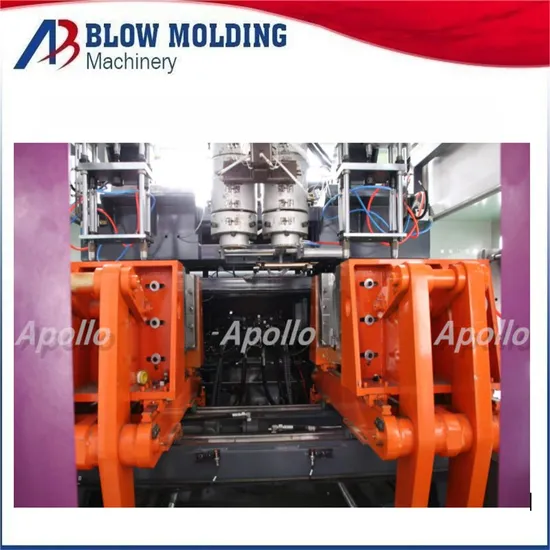

Clamping system Summarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force 80KN
Template distance 148~600mm
Max mould size 400X450mm
Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V/220V,50/60HZ)
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6Mpa
Air displacement 0.8M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 80L/min
Water pressure 0.3-0.6MPa
The main components of the machine. ( ABLB75II )
electronic parts
Name Trader
Micro computer control system
(PLC) Japanese PANASONIC
FP-XC60 SERIES
32 INPUT 16 OUTPUT
Module 16input+16output free for cutomer use
Electric box 30% free space for customer use
Temperature Controller Japanese PANASONIC Module
Auxiliary Relay OMRON
contactor Schneider from France
Electric motor SIEMENS
Power Source TAIWANMEANWELL
Transducer DELTA from TAIWAN
hydraulic parts
Name Trader
Oil pump TAIWAN HIGH-TECH
Valve JAPANYUKEN
Oil pump and connection JAPANYUKEN
Sealed part JAPANHALLITE
air control system
Name Trader
Cylinder TAIWAN AIRTAC
Air Valve TAIWAN AIRTAC
