| Customization: | Available |
|---|---|
| Warranty: | One Year |
| Type: | Extrusion Blow Molding Machine |
| Quantity: | |
|---|---|
Max. Product volume | 5L |
| Out put capacity | 5 00~600 pc s /h |
| Screw diameter | 65mm |
| Screw L/D ratio | 24: 1 L/D |
| Screw drive power | 10 KW |
| Screw heating capacity | 2.6 KW |
| No. of heating zone | 4 zones |
| Output of HDPE | 75KG/H |
| Oil pump drive power | 4.8 KW |
| Clamping force | 65KN |
| Max. size of mold | 80-350 mm |
| Mold stroke | 320 X 350 mm |
| Max. die diameter | 170 mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.46M³ /MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 30 L/MIN |
| Size of Machine | 3.9*2.0*2.6m |
| Weight of machine | 6.5 ton |
| electronic parts | |
| Name | Trader |

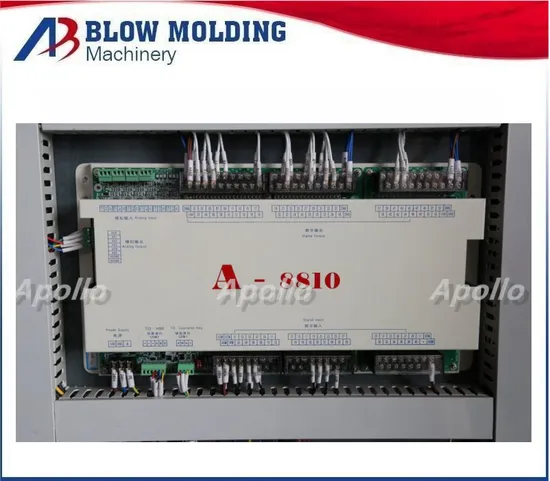

| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | FESTO |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
