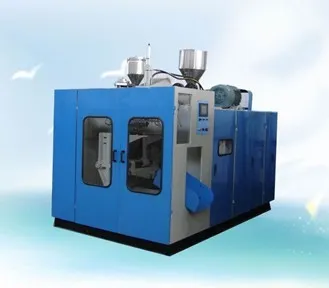

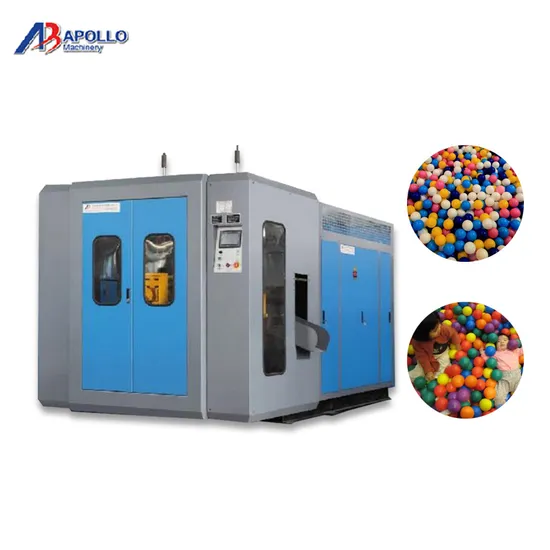

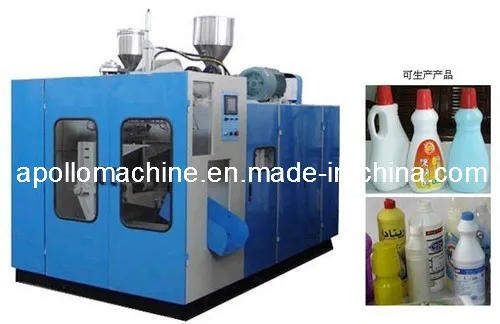

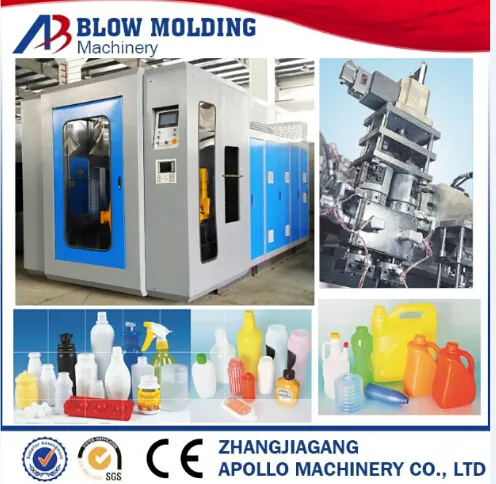

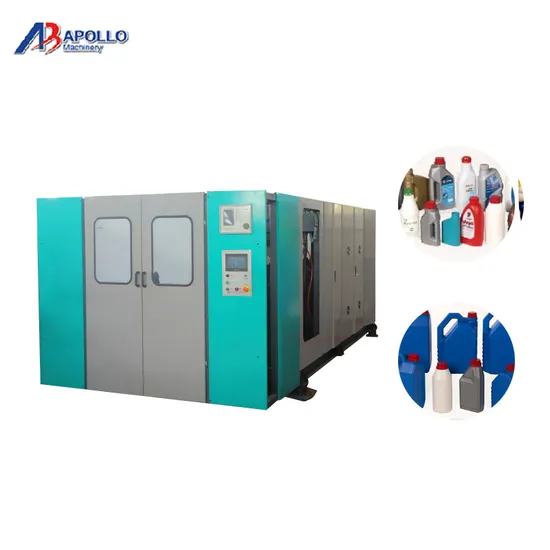

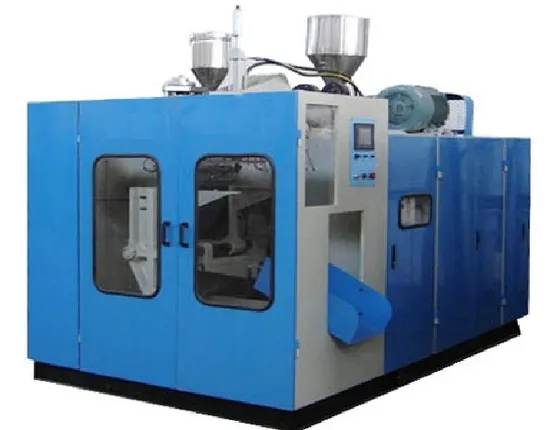

Plastic blow molding machine: ABLB65 Key word: Blow Molding machine, Bottle blow molding machine
This type of machine is suitable to produce different shapes of plastic bottles from 100ml to 5L.
Adopt Mitsubishi PLC from Japan.
Contactor use Schneider from France.
Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan, China to ensure the quality of the machine.
Technical Parameters: ( ABLB65) Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on
Max volume: 5L
Output capacity: 160~250 pcs/h
Size: 3.8×2.2×2.4(M)
Weight: 4.8T
systemSpecificationParametersNote
Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
ReducerHard finishing,High intension,Low noise reducer
Screw65mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization: 85Kg/H HDPE
Heating Zone3-4 Aluminum HeaterAutomatic heating
Heating power8KW/H
Extrusion MotorThree phase asynchronous motor (380V,50HZ)
Cooling Fan: 3-4zone Automatic cooling
Extrusion systemSummarizeHigh-grade alloy steel, center feeding
Die head number: 1 or 2
Center distance of die heads130~160mm
Max die mouth: 140mm
Heating zone: 3-4 Stainless steel heating cycle
Heating power: 3~5KW
Clamping systemSummarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force: 65KN
Template distance: 145~568mm
Max mould size: 290X320mm
Mould material High grade 50# steel
Electric systemSummarizePLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)Japanese Mitsubishi PLC system
Operate interfaceTouch screen, automatic self-diagnose alarm system
Temperature controlAutomatic temperature control module
Movement controlJapanese Mitsubishi, Chinese/English Version
Electric protectionAmpere overload, electric short circuit self-protection function
Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient
Oil pump motorThree phase asynchronous motor (380V,50HZ)
Oil pumpImported double pump
Valves Imported oil pump valves and connections
Oil pipesDouble layer overpressure resistant
System pressure: 60Kg/cm²
Cooling systemSeparate water cooling cycle, oil cooler cooling system
Pneumatic system SummarizeTaiwan AIRTAC pneumatic system
Air pressure: 0.6Mpa
Air displacement: 0.6M3/min
Electromagnetic valve: AIRTAC
Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow: 60L/min
Water pressure: 0.3-0.6MPa
The technical parameter of the machine: | Max. Product volume | 5 liters |
| Out put capacity | 180~210 pc/h |
| Screw diameter | 65mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 6 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 80KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 45KN |
| Max.size of mold | 80-350mm |
| Mold stroke | 320 X 360mm |
| Max.die diameter | 140mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.6 M ³ /MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 65 L/MIN |
| Size of Machine | 2.95x2x2.7m |
| Weight of machine | 6.7ton |
The main components of the machine( ABLB65 II ): | electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
