Automatic 5 Liter HDPE Plastic Water Oil Bottle Making Machine

Name: Automatic 5 Liter HDPE Plastic Water Oil Bottle Making Machine
Rating: 5.0 (47 reviews)

Customization:	Available
Raw Material:	HDPE
Making Method of Parison:	Extrusion-Blow Molding

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB90

Automation

Automatic

Computerized

Certification

CE

Application

Bottle

Max. Product Volume

15L

Screw Diameter

90mm

Screw Drive Power

45kw

Oil Pump Drive Power

11kw

Clamping Force

160kn

Max.Size of Mold

530*550mm

Template Size

550*550mm

Mold Stroke

320-620mm

Weight of Machine

8 Ton

Transport Package

Film Packing

Specification

CE/SGS

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

8477301000

Production Capacity

200 PCS/H

Product Description

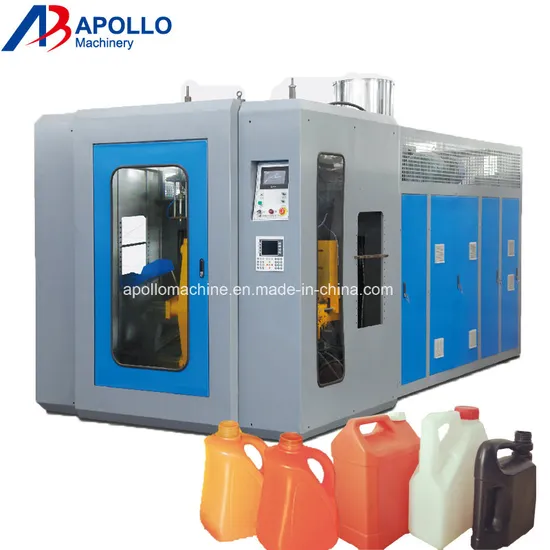

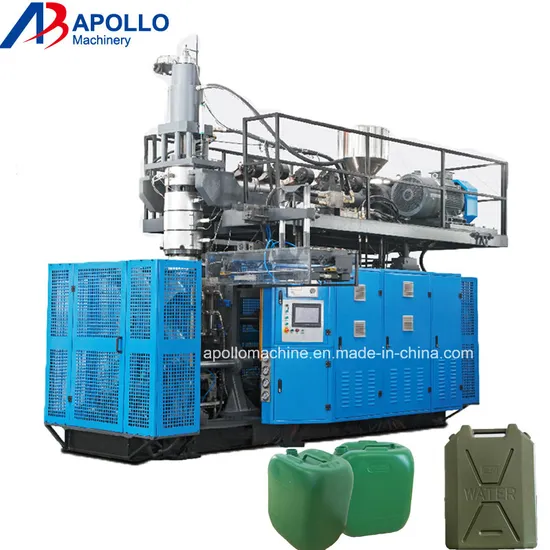

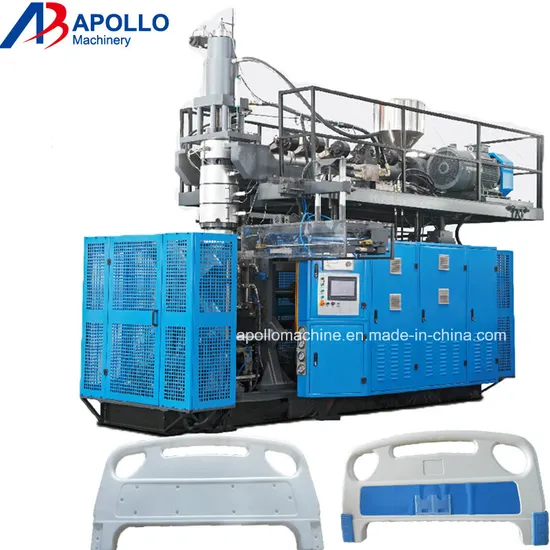

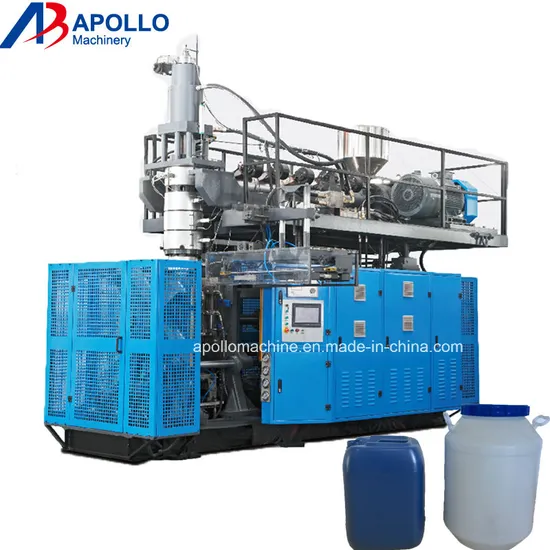

ABLB90II 4 gallon bottle blow molding machine

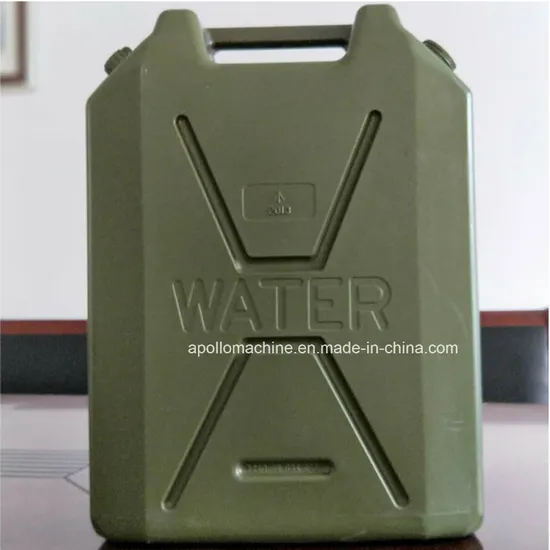

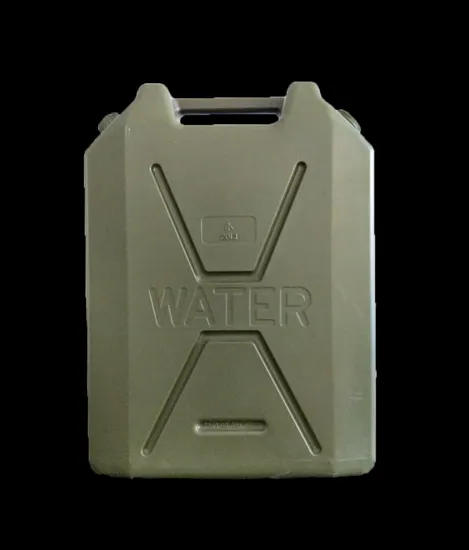

was specially designed for making plastic water gallons, lubricant oil bottles, tool boxes, plastic drums, and other plastic containers not over 20L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 20L.
(2)Double station single die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Full automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
(8)Special screw cut device available

Max. Product volume	20 liters
Out put capacity	2160~2400pc/day
Screw diameter	90mm
Screw L/D ratio	24 L/D
Screw drive power	45KW
Screw heating capacity	8 KW
No.of heating zone	4 zones
Output of HDPE	128KG/H
Oil pump drive power	11 KW
Clamping force	108KN
Max.size of mold	240-660mm
Mold stroke	530 X 550mm
Max.die diameter	180mm
Blowing pressure	0.6 mpa
Air Volume	0.9 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
Size of Machine	4.2x3x3.1m
Weight of machine	11ton
