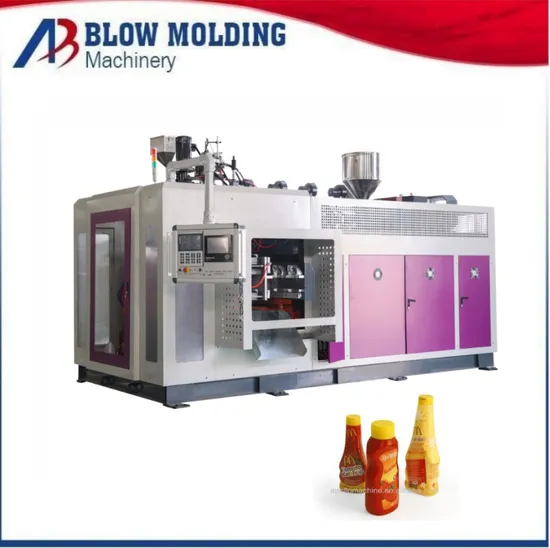

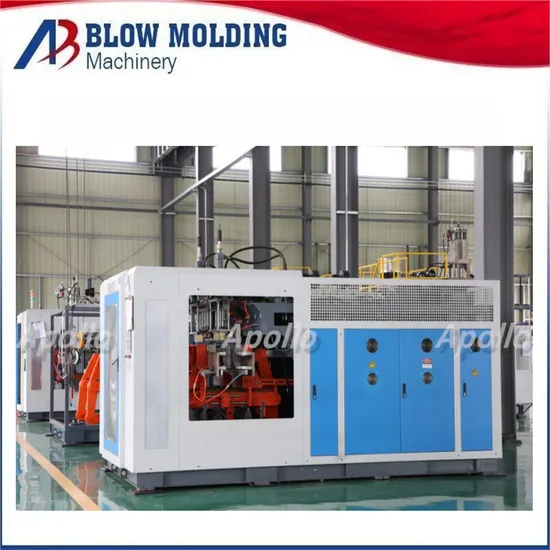

Plastic Blow Molding Machine/plastic making machine/extrusion blow moulding machine/plastic jerry cans/drums /bottles blow moulding macine
three layers Pesticide Bottle Making Machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
The features of this machine:

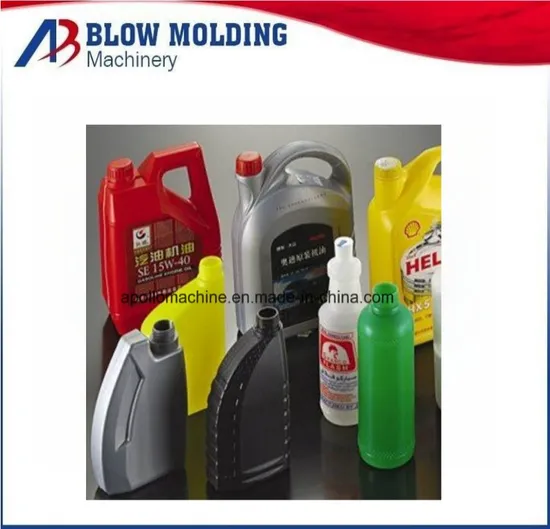

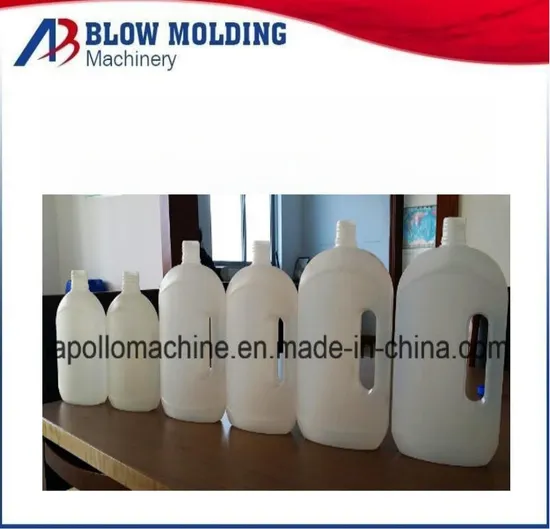

(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 3.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
| Max. Product volume | 3.5L |
| Out put capacity | 400~600pcs/h |

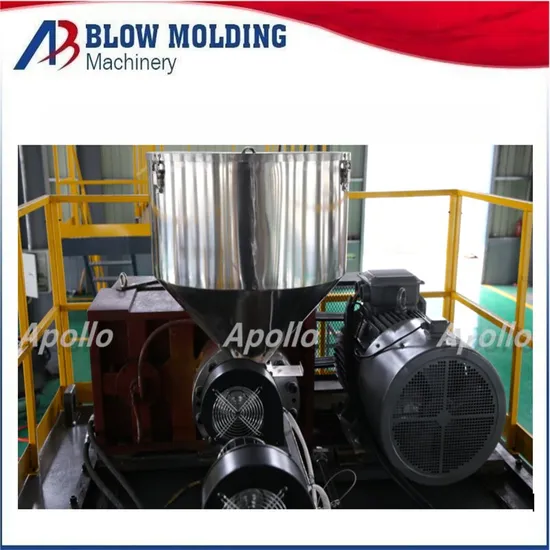

| Screw diameter | 75mm |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 10KW |
| Screw heating capacity | 2.6KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 100KG/H |
| Clamping force | 80KN |
| Max.size of mold | 400*430mm |
| Max.die diameter | 170mm |
| Blowing pressure | 0.6mpa |
| Air Volume | 0.7M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 60L/MIN |
| Size of Machine | 4.2*2.0*2.7 |
| Weight of machine | 6.8on |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
