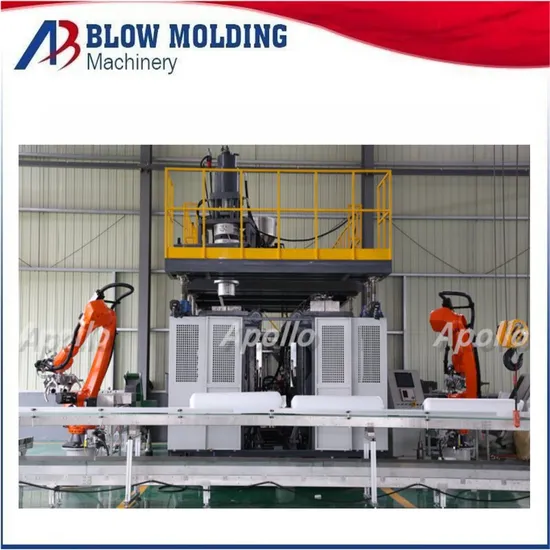

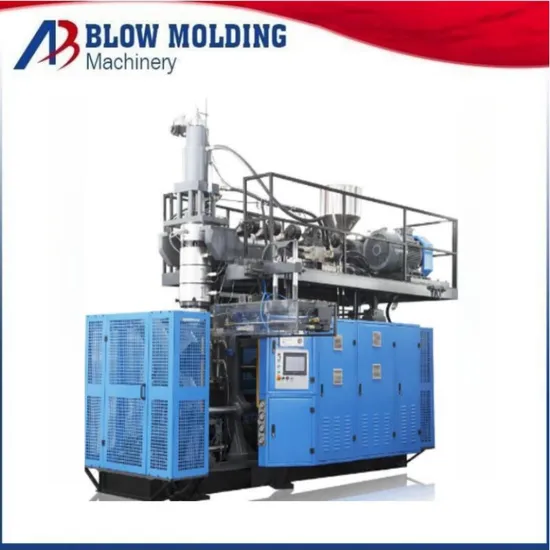

Extrusion blow moulding machine

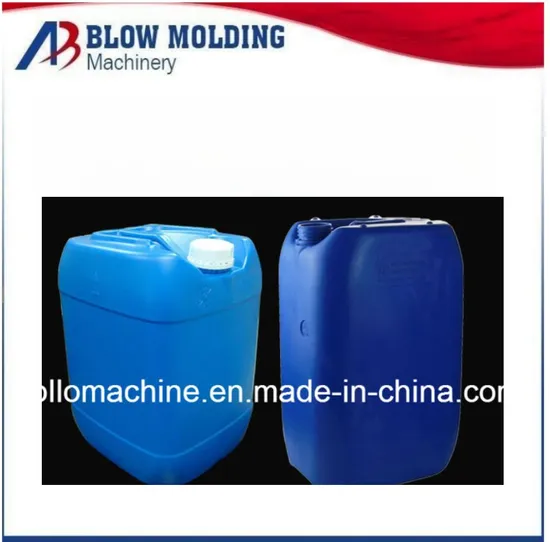

Jerry cans blow moulding machine
Model No.: ABLD80(single station single die head)

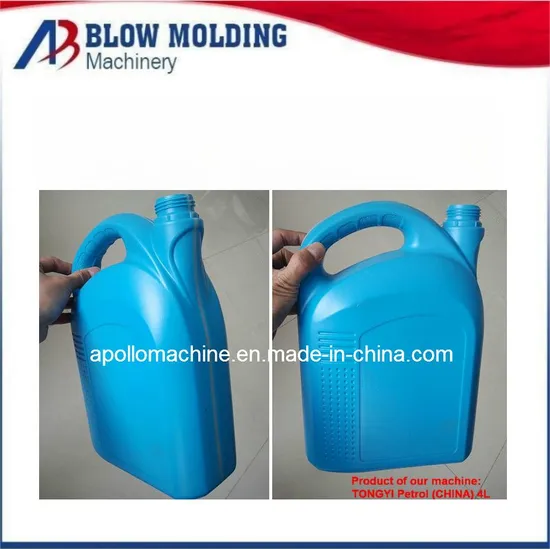

ABLD80 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 25L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 30L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
Main parts of Machine Picture Explanation
Oil Pump
Oil pump From Japan YUKEN driving the machine
Computer control system (PLC)
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen
Parison
controller
MOOG parison
controller
Control the thickness of products
Screw cutter device
This device is able to remove the extra top of gallons
Die head
Accumulation die head
Manipulator
Manipulator will
Take the finished
Product out
Automatically
Electric Cabinet
This part is the full electric components of the machine
Max. Product volume |
30 liters |
Dry cycle |
450pc/h |

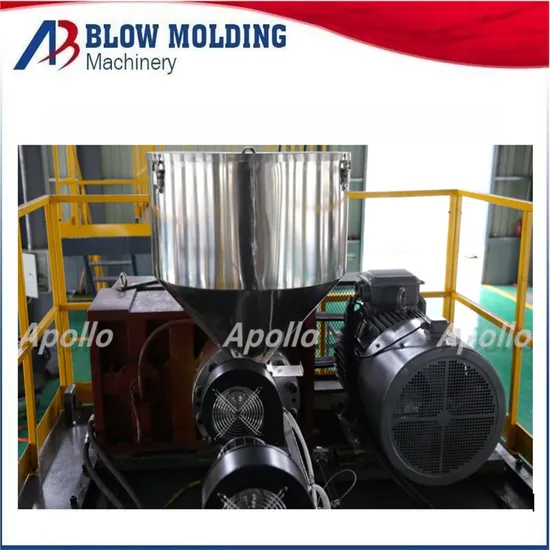

Screw diameter |
90mm |
Screw L/D ratio |
25 L/D |
Screw drive power |
37 KW |
Screw heating capacity |
18 KW |
No. of heating zone |
4 zones |
Output of HDPE |
130 KG/H |
Oil pump drive power |
30 KW |
Clamping force |
260 KN |
Max. size of mold |
450-1000mm |
Mold stroke |
700X950mm |
Max. die diameter |
340mm |
Die heating power |
7.6 KW |
Die heating segments |
4 zones |
Blowing pressure |
0.8mpa |
Air volume |
1.0 M³ /MIN |
Cooling water pressure |
0.3mpa |
Water consumption |
90 L/MIN |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.

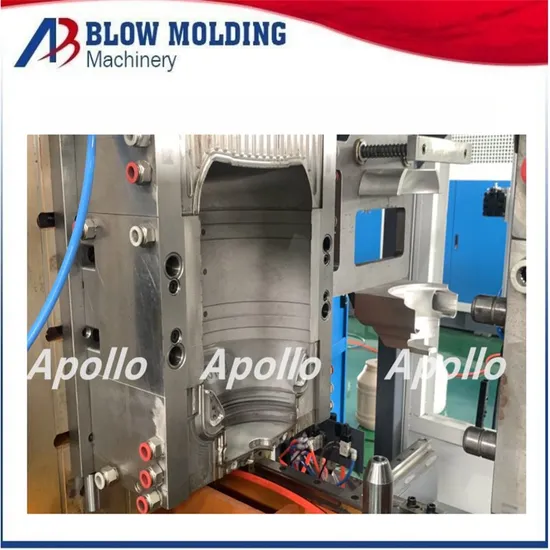

2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
