| Customization: | Available |
|---|---|
| Type: | Extrusion Blow Molding Machine |
| Raw Material: | PE |
| Quantity: | |
|---|---|
The main components of the machine:
| electronic parts | |
| Name | Trader |

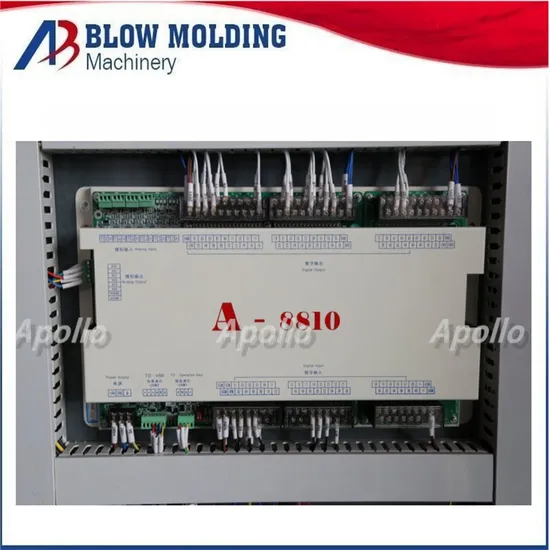

| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | FESTO |
| Max. Product volume | 8 L |
| Out put capacity | 750*2 pcs/h |
| Screw diameter | 75MM |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 7-8 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100 KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 80 KN |
| Max.size of mold | 400*430 MM |
| Mold stroke | 170-520 MM |
| Max.die diameter | 170 MM |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 80 L/MIN |
| Size of Machine | 4.2x2.2x2.7 m |
| Weight of machine | 7.5 Ton |
After-sale Service:
1. One year warrantly after sale.
2. Provide technical advisory service for a long time.
3. Professional after-sale service.
4. If there is any problem with the machine , or any main parts are broken, we will ask our profesionals and technical personnel to repair it or replace it for free.
5. We will train two or three operating man for free.
(Travel and hotel is paid by buyer's expenses.)
Contact us:
Dear customer,
Thanks for your visiting! APOLLO Machinery is a professional manufacturer for blowing machine . We treat every customer seriously. We will offer the most suitable soluition for you! We are ready to solve the problem for you!
So in order to offer you the best quotation and the most suitable machine , please kindly let us know when you make the inquiry. Such as:
1. What kind of bottle or contanier you want to make? what's the volume ? Pictures would be helpful!
2. What will you filling into the bottle?
3. What's the capacity you really want?
Looking forward to hearing from you!
Any more questions, please feel free to contact us!
