China Famous Brand Plastic Oil Bottle Blow Molding Making Machine

Name: China Famous Brand Plastic Oil Bottle Blow Molding Making Machine
Rating: 5.0 (60 reviews)

Customization:	Available
Packaging Type:	Bottles
Type:	Lubricant Bottle Blow Molding Machine

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB75

Application

Other Plastic Containers Not Over 25L

Automatic Grade

Automatic

Series

Lubricant Bottle Blow Molding Machine

Template Size

380*420mm

Max.Size of Mold

400*430mm

Clamping Force

80kn

Oil Pump Drive Power

7.5kw

Transport Package

Film Packing

Specification

ISO9001

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

84773000

Production Capacity

360PCS/H

Product Description

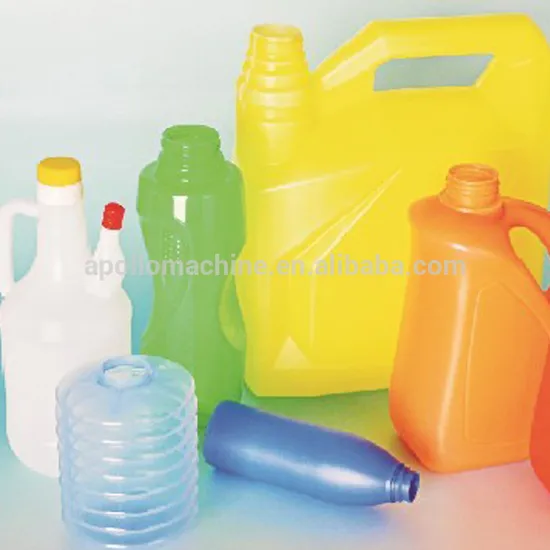

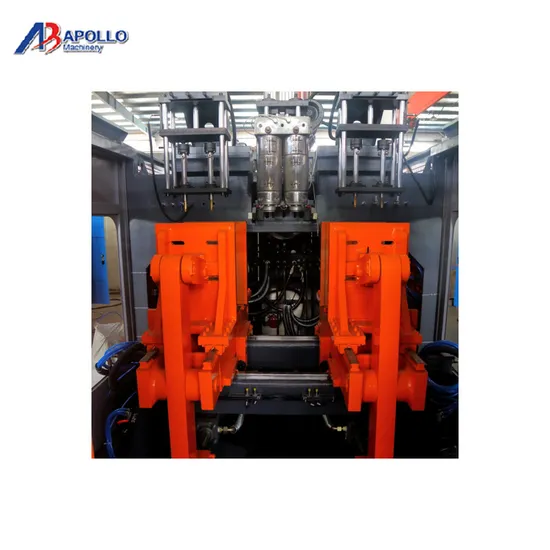

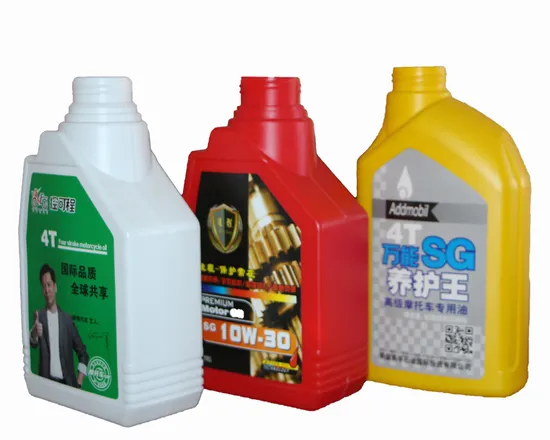

ABLB75 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 25L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 25L.
(2)Single station two die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.

Max. Product volume	25 liters
Output capacity	80~120pc/h
Screw diameter	75mm
Screw L/D ratio	25 L/D
Screw drive power	30 KW
Screw heating capacity	16 KW
No.of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	22 KW
Clamping force	210 KN
Max.size of mold	550X650mm
Mold stroke	350-780mm
Max.die diameter	280mm
Die heating power	5.3 KW
Die heating segments	4 zones
Blowing pressure	0.8mpa
Air volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	60 L/MIN
