| Customization: | Available |
|---|---|
| Warranty: | 1year |
| Type: | Extrusion Blow Molding Machine |
| Quantity: | |
|---|---|
| Features: (ABLB75II) Max. Product volume: 7.5 liters Dry cycle: 800X2PC/h Screw diameter: 75mm Screw L/D ratio: 24 L/D Screw drive power: 22 KW Screw heating capacity: 7 KW No. Of heating zone: 3/4 zones Output of HDPE: 100 KG/H Oil pump drive power: 7.5-11 KW Clamping force: 78 KN Max. Size of mold: 148-568mm Mold stroke: 400X450mm Max. Die diameter: 160mm Blow pressure: 0.6mpa Air volume: 0.8M³ /MIN Cooling water pressure: 0.3mpa Water consumption: 80 L/MIN. | |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.

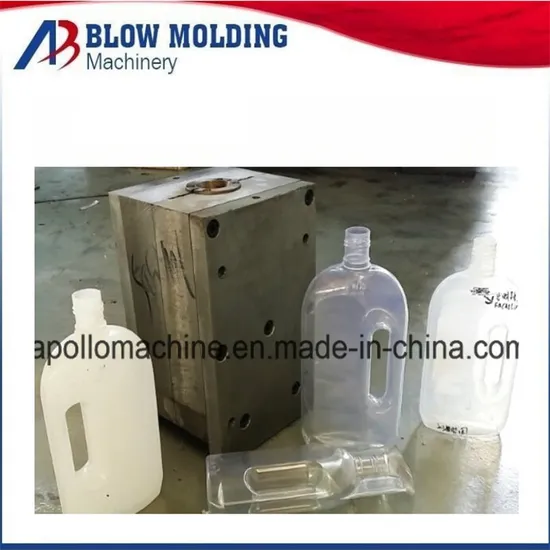

2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
| Features: (ABLB75II) Max. Product volume: 7.5 liters Dry cycle: 800X2PC/h Screw diameter: 75mm Screw L/D ratio: 24 L/D Screw drive power: 22 KW Screw heating capacity: 7 KW No. Of heating zone: 3/4 zones Output of HDPE: 100 KG/H Oil pump drive power: 7.5-11 KW Clamping force: 78 KN Max. Size of mold: 148-568mm Mold stroke: 400X450mm Max. Die diameter: 160mm Blow pressure: 0.6mpa Air volume: 0.8M³ /MIN Cooling water pressure: 0.3mpa Water consumption: 80 L/MIN. | |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
