Automatic Plasticbottle 5L Extrusion Blow Moulding Machine (ABLB75II) Equipment Machine

Automatic Plasticbottle 5L Extrusion Blow Moulding Machine (ABLB75II) Equipment Machine

Name: Automatic Plasticbottle 5L Extrusion Blow Moulding Machine (ABLB75II) Equipment Machine
Rating: 5.0 (8 reviews)

Customization:	Available
Raw Material:	HDPE
Making Method of Parison:	Extrusion-Blow Molding

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLD75

Automation

Non-Automatic

Computerized

Certification

CE

Name

Ablb75II

Screw

75mm

Max Volume

8L

Cerification

CE

Transport Package

Film Packing

Specification

ISO9001

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

84773000

Production Capacity

300-400 PCS/H

Product Description

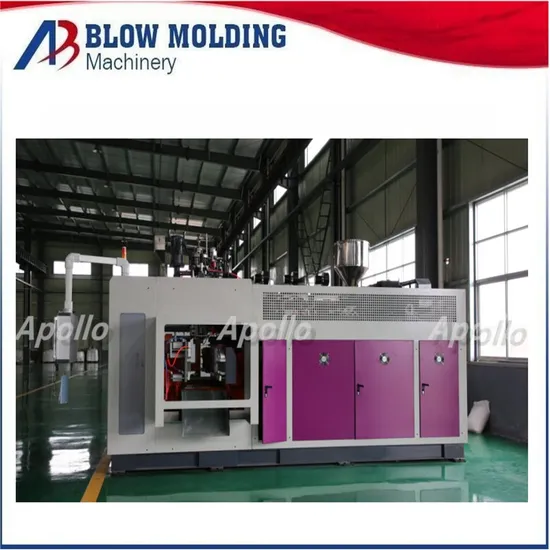

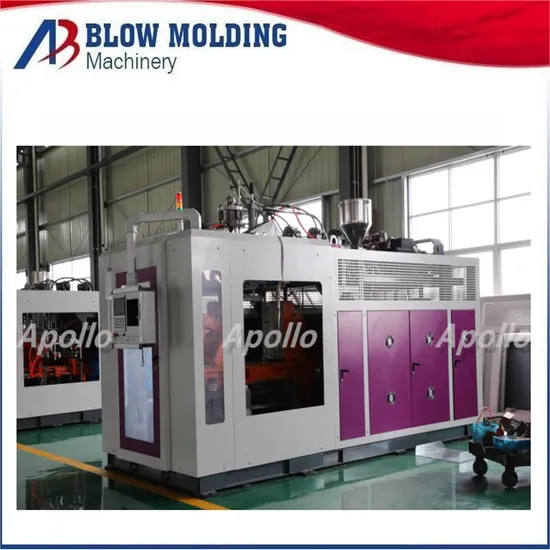

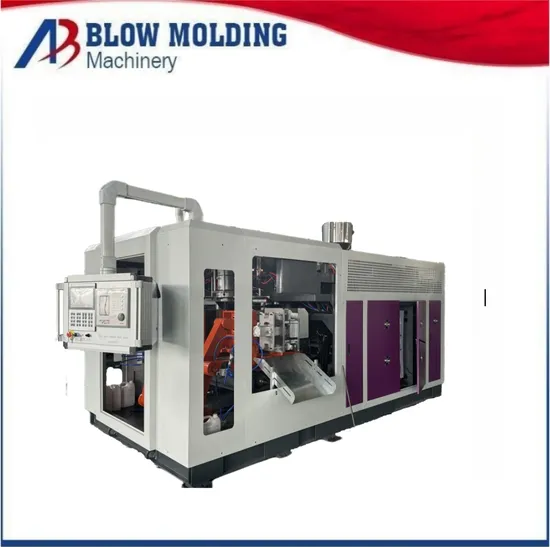

Automatic Plasticbottle 5L Extrusion Blow Moulding Machine (ABLB75II) Equipment Machine

plastic bottle making machine
ABLB75II

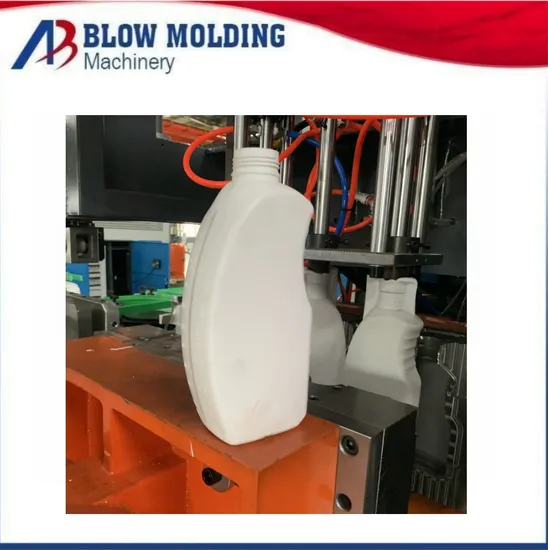

extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.

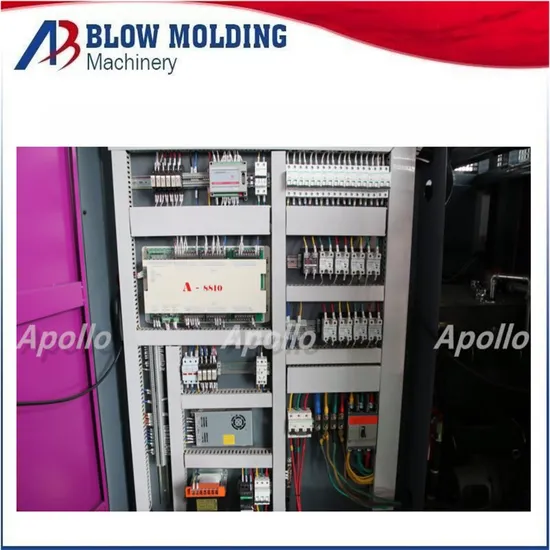

(7)Auto lubricant system controlled by PLC.

Max. Product volume	8 L
Out put capacity	*7502 pcs/h**
Screw diameter	75MM
Screw L/D ratio	24:1 L/D
Screw drive power	22 KW
Screw heating capacity	7-8 KW
No.of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	7.5 KW
Clamping force	80 KN

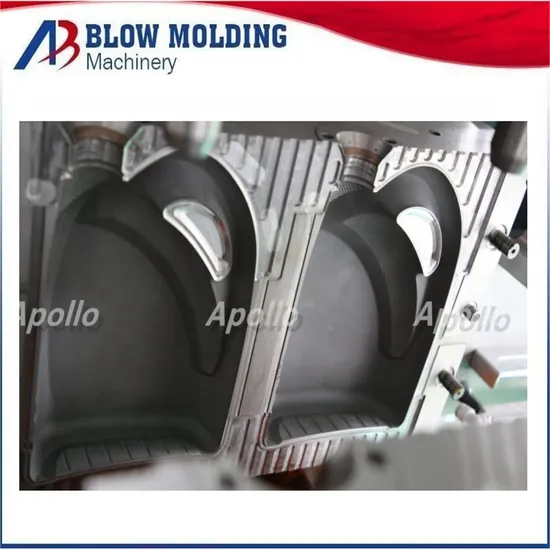

Max.size of mold	*400430 MM**
Mold stroke	170-520 MM
Max.die diameter	170 MM
Blowing pressure	0.6 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	4.2x2.2x2.7 m
Weight of machine	7.5 Ton
