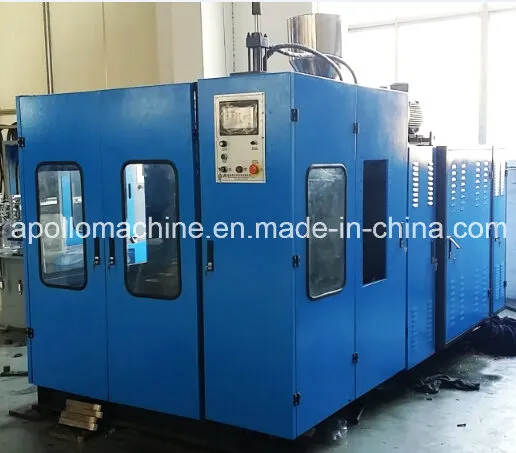

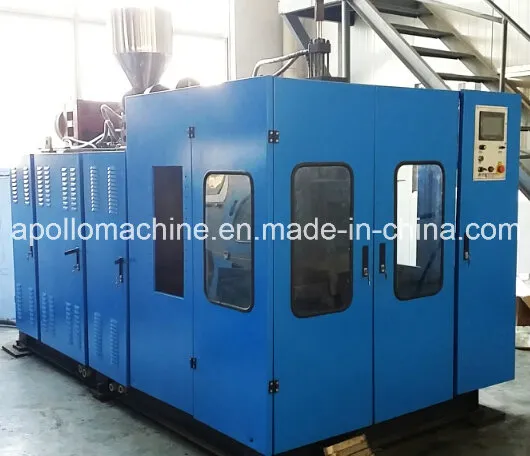

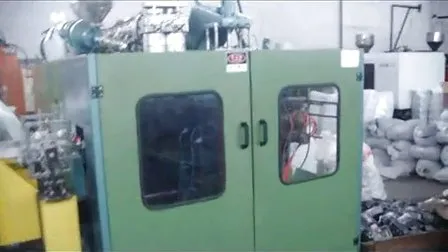

Full-automatic extrusion blow moulding machine:

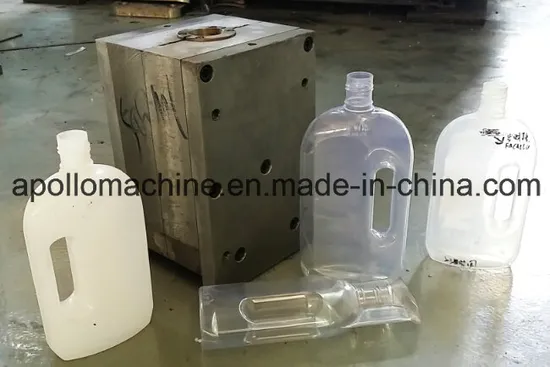

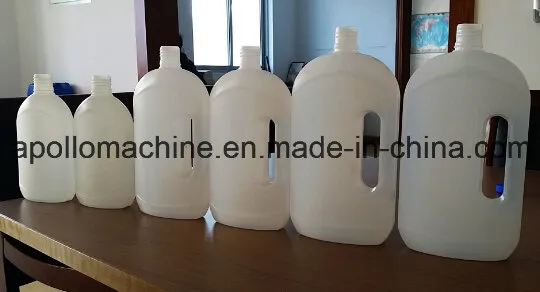

Automatic blow molding machine for making HDPE or PP detergents bottles,shampoo,liquid soap
cosmetical,household package,jars,jerry cans up to 2L.
The features of this machine:
(1)It is suitable for producing PP, PE, PVC and plastic containers and bottles in all shapes, the max. Product volume is up to 2L.
(2)It is mainly designed for small plastic products and plastic tube, especially for plastic suction tube.
(3)Feeding system carries performance automatically through a suction feeder. It can save the labor cost for you. One worker can look after 5 sets at the same time.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting and maintenance.
Technical Parameters: ( ABLB45 ) Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 1000mL
Output capacity 360~400 pcs/h
Size 2.8×1.9×2.3(M)
Weight 3.8T
system Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system, transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 45mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization 60Kg/H HDPE
Heating Zone 3-4 Aluminum Heater Automatic heating
Heating power 5KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ)
Cooling Fan 3-4zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth 80mm
Heating zone 3-4 Stainless steel heating cycle
Heating power 2~4KW
Clamping system Summarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force 32KN
Template distance 90~400mm
Max mould size 290X350mm
Mould material High grade 50# steel
Electric system Summarize

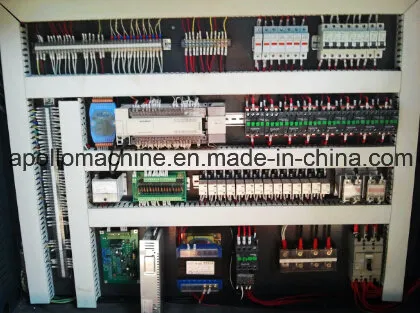

PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (220V,60HZ)
Oil pump Imported double pump 5.5kw
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6Mpa
Air displacement 0.6M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 60L/min
Water pressure 0.3-0.6MPa
The main components of the machine. ( ABLB45 )
electronic parts
Name Trader
Micro computer control system Japanese MITSUBISHI
Temperature Controller Japanese MITSUBISHI MODULE
Auxiliary Relay OMRON
contactor Schneider from France
Electric motor Three phase 220V SIEMENS
Power Source TAIWAN MEANWELL
Transducer DELTA
Touch Screen Japanese MITSUBISHI
hydraulic parts
Name Trader
Oil pump TAIWAN HIGH-TECH
Valve JAPAN YUKEN
Oil pump and connection JAPAN YUKEN
Sealed part HALLITE
air control system
Name Trader
Cylinder AIRTAC
Air Valve AIRTAC
| Max. Product volume | 2L |
| Out put capacity | 5 00~600 pc s /h |
| Screw diameter | 45 mm |
| Screw L/D ratio | 24: 1 L/D |
| Screw drive power | 10 KW |
| Screw heating capacity | 2.6 KW |
| No. of heating zone | 3 zones |
| Output of HDPE | 35 KG/H |
| Oil pump drive power | 4.8 KW |
| Clamping force | 32 KN |
| Max. size of mold | 80-350 mm |
| Mold stroke | 250 X 320 mm |
| Max. die diameter | 80 mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.4 M³ /MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 30 L/MIN |
| Size of Machine | 2.6x1.4x2.2m |
| Weight of machine | 2.8 ton |
The main components of the machine:
| electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | FESTO |
