Famous Automatic Plastic Oil Drum 5L 8L 10L Made in China Blow Machine

Customization: Available
Warranty: One Year
Type: Extrusion Blow Molding Machine
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Overview

Basic Info.

Model NO.
ABLB80
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Bottle
Max.Product.Volume
3.5L
Blow Moulding Type
Extrusion Blow Moulding
Brand Name
Apollo
Power
30kw
Max Size of Mold
250*320
out Put HDPE
60kg/H
Screw Diameter
55
Blowing Pressure
0.6map
Weight of machine
4.3t
Transport Package
Film Packing
Specification
ISO9001
Trademark
APOLLO
Origin
Zhangjiagang City, Jiangsu Province, China
HS Code
84773000
Production Capacity
270PCS/H

Product Description



Company Profile

Famous Automatic Plastic Oil Drum 5L 8L 10L Made in China Blow Machine



Product Description

Famous Automatic Plastic Oil Drum 5L 8L 10L Made in China Blow MachineABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 9L. This design is low power consumption and very stable.


The features of this machine:

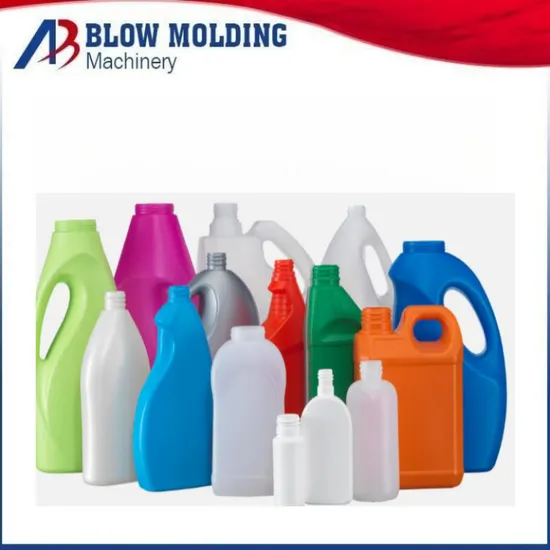

(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 9L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.



Product Parameters



Suitable material PC,PP,PE,HDPE
Max volume 9L
Output capacity 60-7-pcs/h
Size 4.2×2.2×2.7(M)
Weight 7.5T
Specification Parameters Note
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 75mm,L/D ratio 24  Cooling system available
Plasticization 100Kg/H  (PC) PC
Heating Zone 4 Aluminum Heater Automatic heating
Heating power 10KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ)
Cooling Fan 8 zone          Automatic cooling

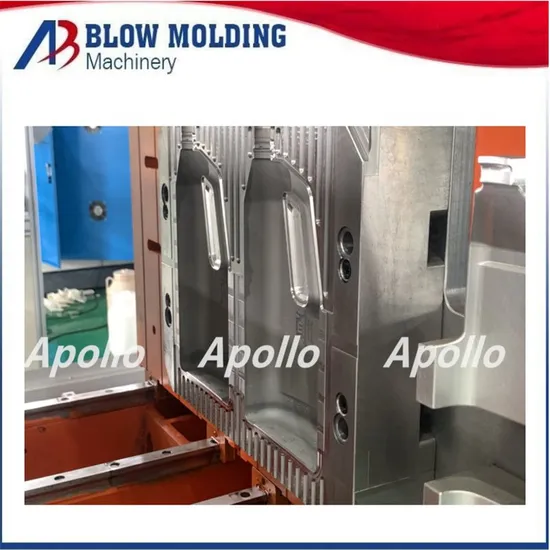

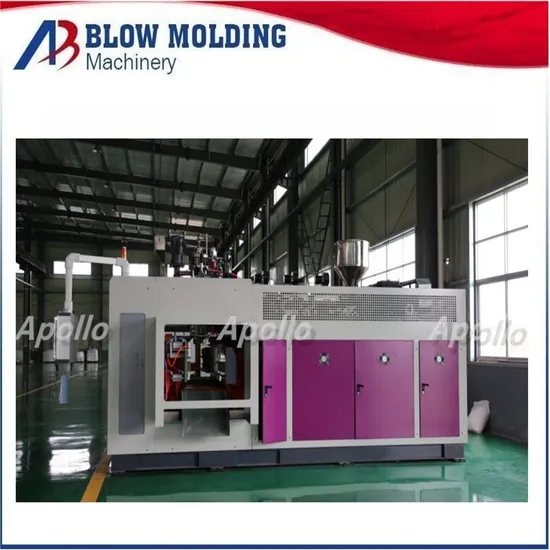

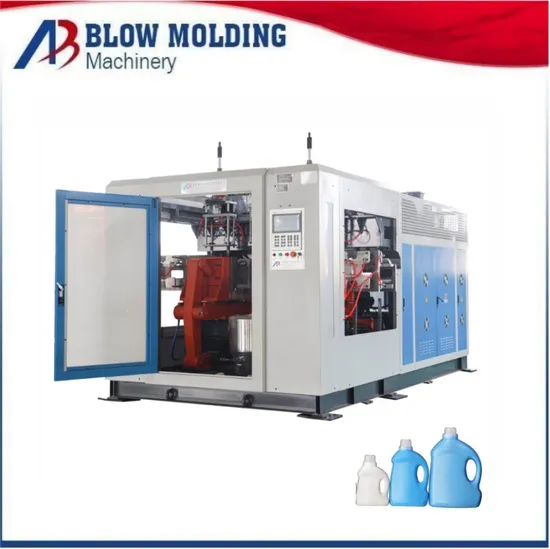

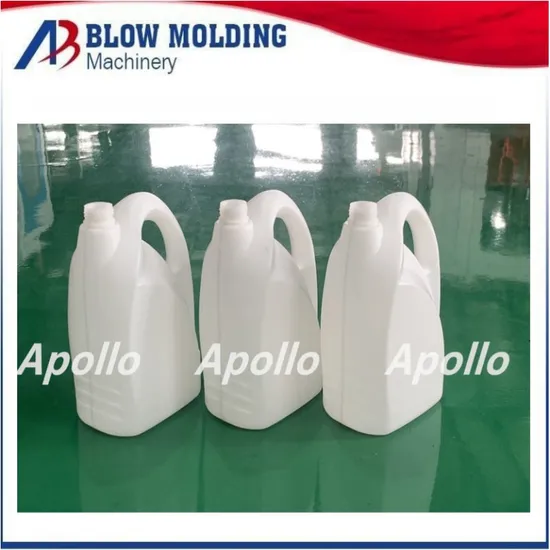

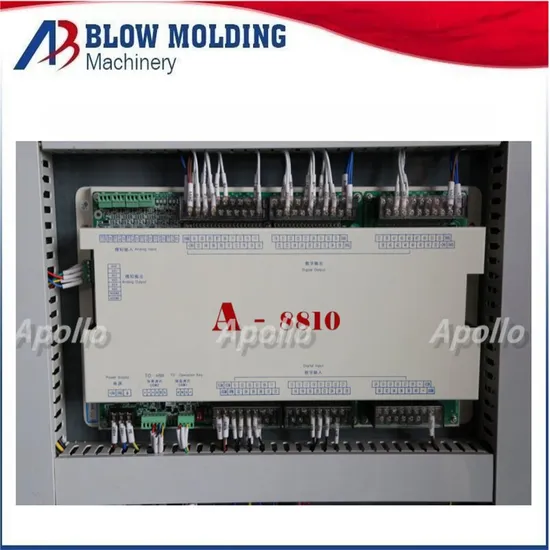

Detailed Photos


Famous Automatic Plastic Oil Drum 5L 8L 10L Made in China Blow Machine

FAQ



Famous Automatic Plastic Oil Drum 5L 8L 10L Made in China Blow Machine1. Q: -Can the machine customized only for my products?
  A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure  special design and brand of parts special request.

2. Q: -How about the molds ?
  A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various  for optional.

3. Q: -What is the business item for this project ?
  A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed  by buyer and APOLLO .
        b. Port of Loading: SHANGHAI, CHINA.
        c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
        d. Container needed: One 20GP container.
