1 L 3 L 5 L HDPE PP PC Bottle Drum Jars Jerry Can Blow Molding Machine

Name: 1 L 3 L 5 L HDPE PP PC Bottle Drum Jars Jerry Can Blow Molding Machine
Rating: 5.0 (27 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	PE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB75I

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Max.Product Volume

5L

Screw Diameter

75mm

Screw Heating Capacity

22 Kw

Screw Drive Power

18kw

Output of HDPE

100 Kg /H

Transport Package

Film Packing

Specification

ABLB75I

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

84773000

Production Capacity

140PCS/H

Product Description

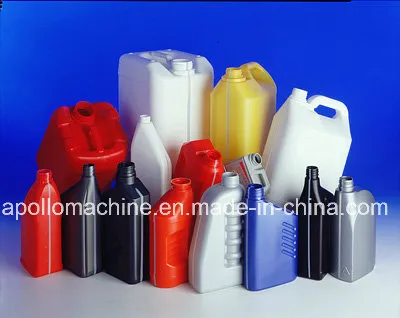

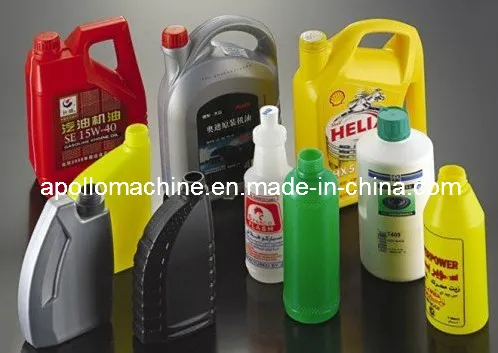

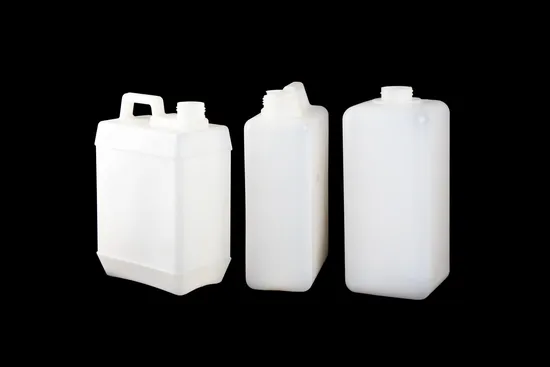

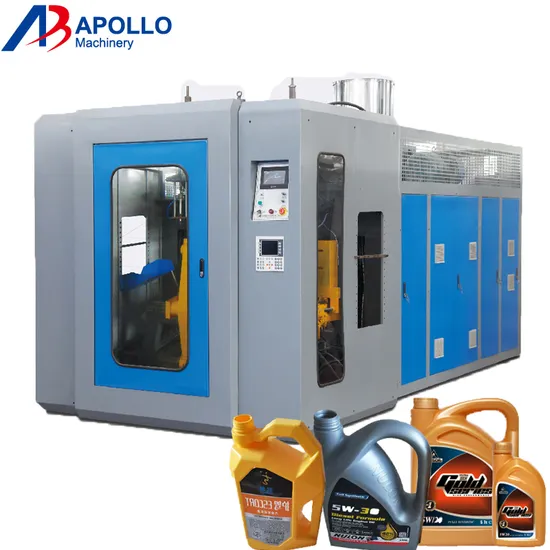

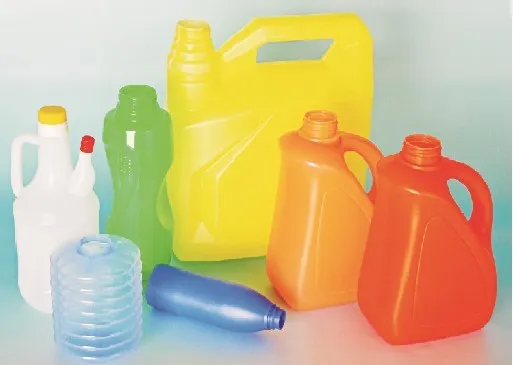

ABLB75Iblow moulding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 8L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.

Max. Product volume	8liters
Output capacity	1800-2400pc/day
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22KW
Screw heating capacity	7 KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	7-5KW
Clamping force	45KN
Max.size of mold	400X450mm
Mold stroke	148-568mm
Max.die diameter	160mm
Blowing pressure	0.8 mpa
Air Volume	1 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	3.8x2.2x2.8m
Weight of machine	8ton
