HDPE/LDPE/LLDPE Household Detergent Bottles Blowing Molding Machine Market

Customization: Available
Type: Extrusion Blow Molding Machine
Suitable Material: PE, PP, PVC
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Overview

Basic Info.

Model NO.
ABLB65
Station
Single or Double
PLC
Mutisubishi
Deflashing Unit
Available
Parison Controller
Moog (as Option)
Electricals
Schneider
Hydraulic Motor
German Dmass Servo Motor
Invertor
ABB or Delta
Hydraulic Valve
Yuken
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Film Packing
Specification
ISO9001
Trademark
APOLLO
Origin
Zhangjiagang City, Jiangsu Province, China
HS Code
847730100
Production Capacity
400~800 PCS/H

Product Description



Company Profile



HDPE/LDPE/LLDPE Household Detergent Bottles Blowing Molding Machine Market

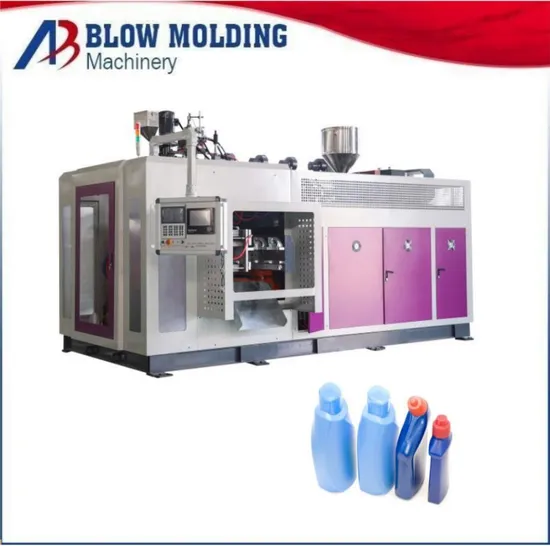

ABLB65 full automatic bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 5L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station three die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.

Product Parameters



Max. Product volume 5 liters
Out put capacities 150~180pc/h
Screw diameter 65mm
Screw L/D ratio 24 L/D
Screw drive power 18.5 KW
Screw heating capacity 6 KW
No.of heating zone 3 zones
Output of HDPE 80KG/H
Oil pump drive power 7.5 KW
Clamping force 65KN
Max.size of mold 148-568mm
Mold stroke 330 X 370mm
Max.die diameter 160mm
Blowing pressure 0.6 mpa
Air Volume 0.6 M³/MIN
Cooling water pressure 0.3mpa
Water consumption 50 L/MIN
Size of Machine 3.1x1.5x2.7m
Weight of machine 5.5 ton

Certifications

HDPE/LDPE/LLDPE Household Detergent Bottles Blowing Molding Machine Market

Our Advantages

HDPE/LDPE/LLDPE Household Detergent Bottles Blowing Molding Machine Market

FAQ

1. Q: -Can the machine customized only for my products?
  A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure  special design and brand of parts special request.

2. Q: -How about the molds ?

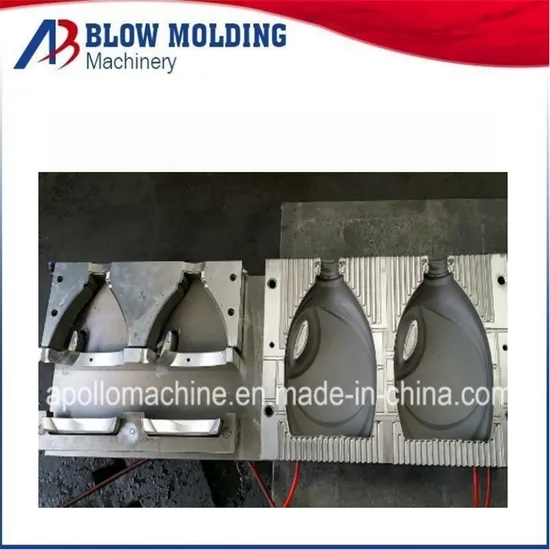

  A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various  for optional.

3. Q: -What is the business item for this project ?
  A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed  by buyer and APOLLO .
        b. Port of Loading: SHANGHAI, CHINA.
        c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
        d. Container needed: One 20GP container.
