| Customization: | Available |
|---|---|
| Warranty: | One Year |
| Type: | Extrusion Blow Molding Machine |
| Quantity: | |
|---|---|

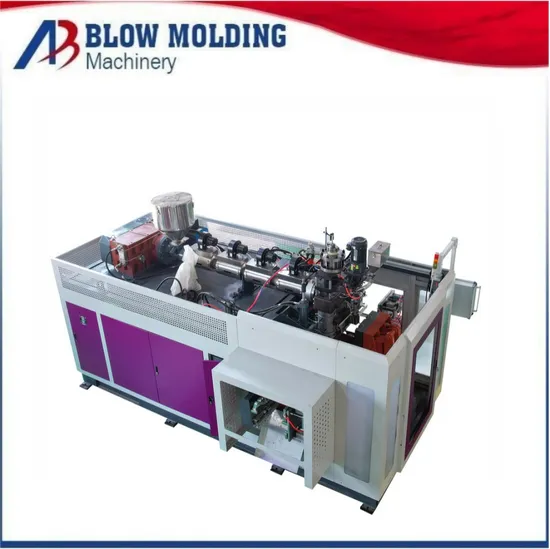

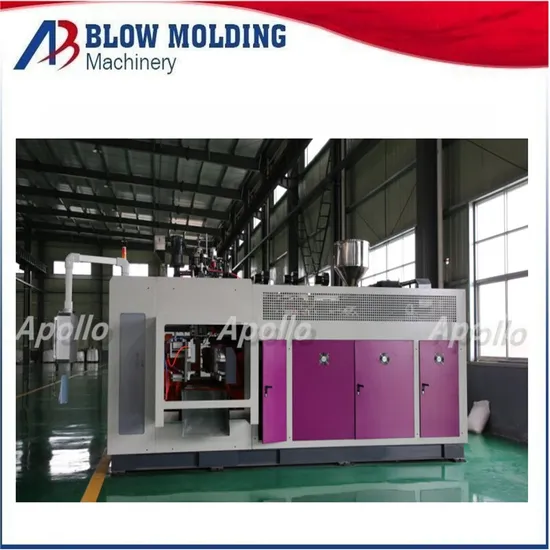

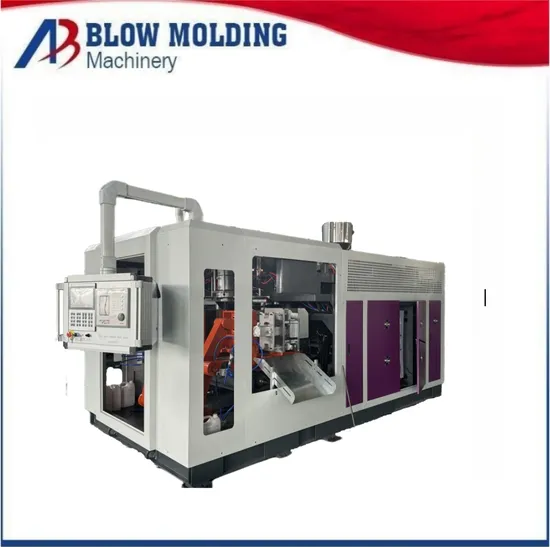

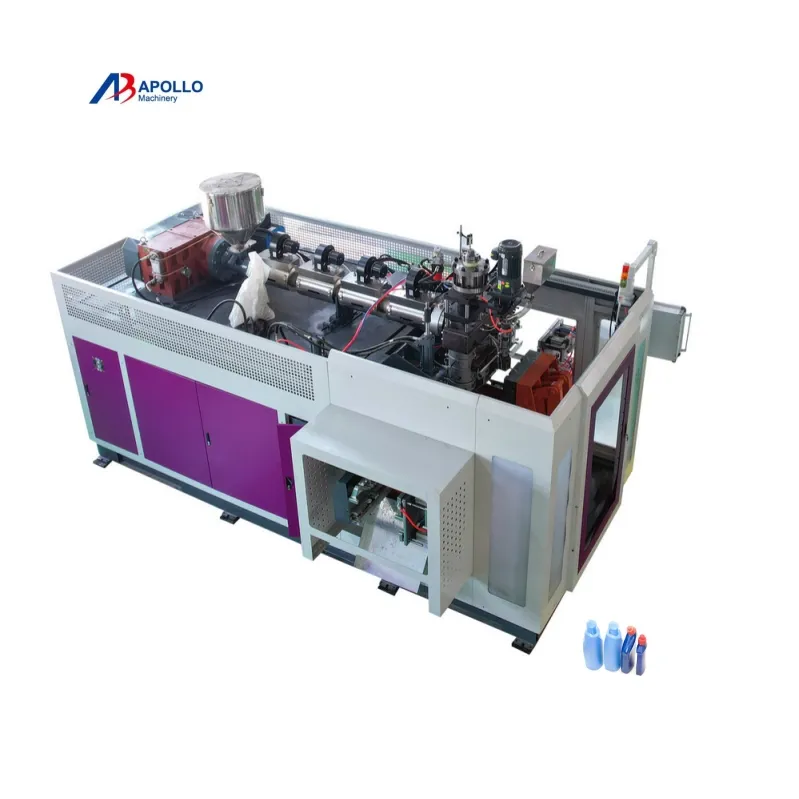

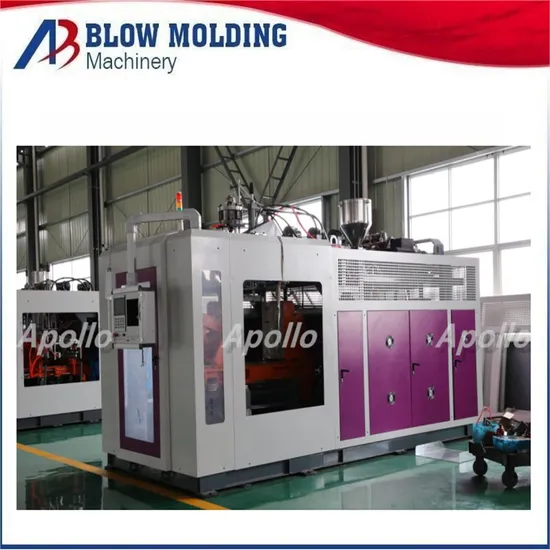

ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 8L.
| Max. Product volume | 8 L |
| Out put capacity | 750*2 pcs/h |

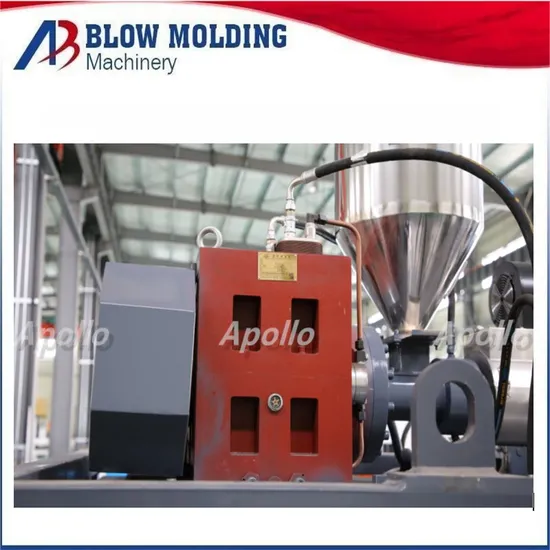

| Screw diameter | 75MM |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 7-8 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100 KG/H |
| Oil pump drive power | 7.5 KW |

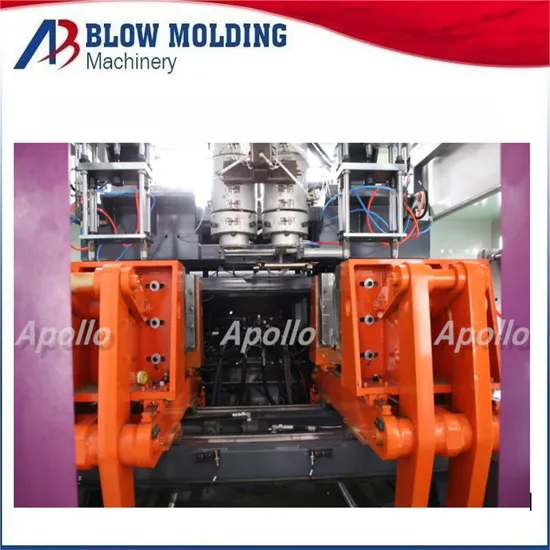

| Clamping force | 80 KN |
| Max.size of mold | 400*430 MM |
| Mold stroke | 170-520 MM |
| Max.die diameter | 170 MM |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 80 L/MIN |
| Size of Machine | 4.2x2.2x2.7 m |
| Weight of machine | 7.5 Ton |

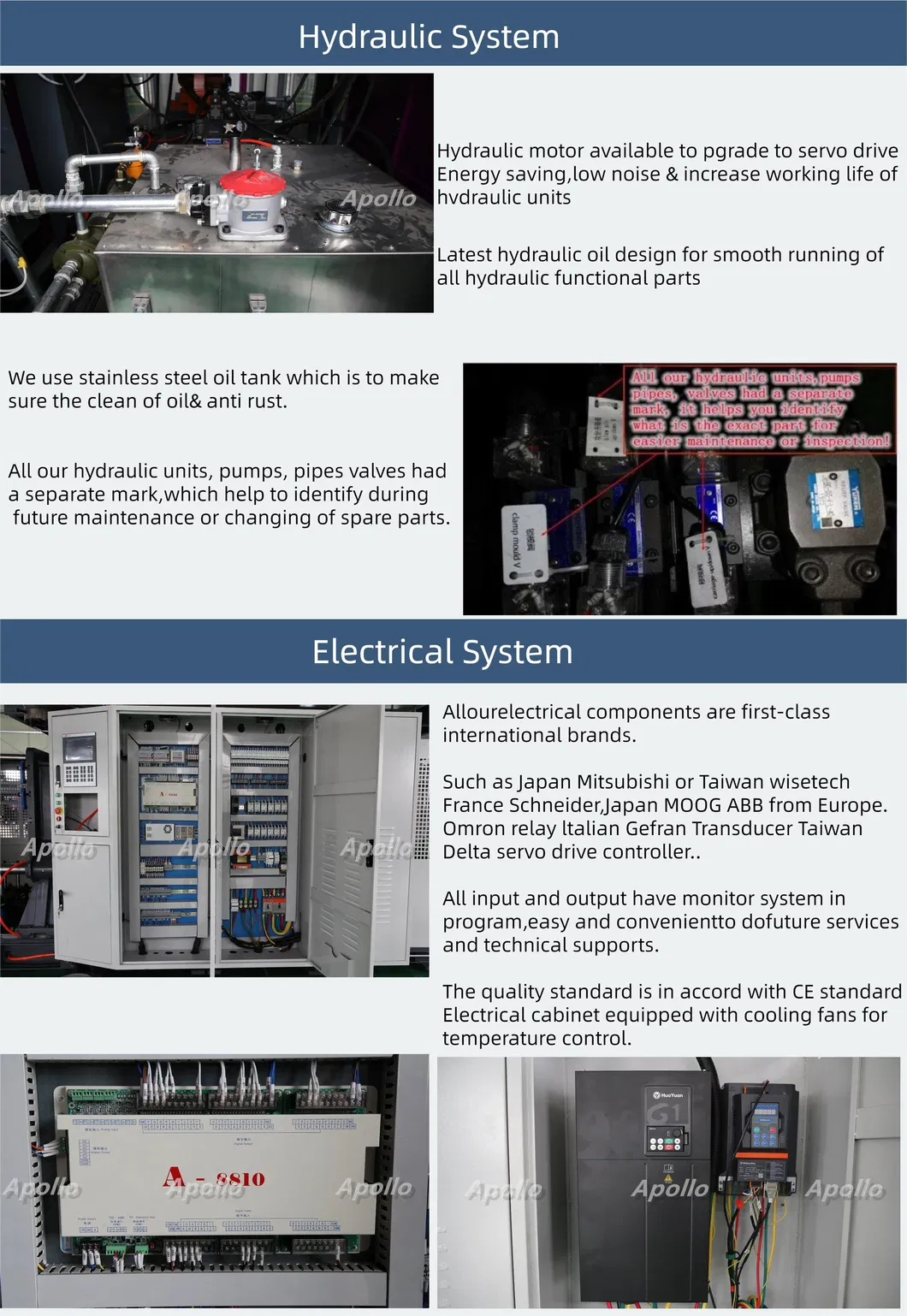

| Electronic Parts | |
| Name | Brand |
| Micro computer control system | Japanese MITSUBISHI |
| Tempreture Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| Contactor | Schneider(France) |
| Electric motor | SImens |
| Power Source | MEANWELL(Taiwan) |
| Transudcer | ABB |
| Hydraulic Parts | |
| Oil pump | HIGH-TECH(Taiwan) |
| Valve | YUKEN(Japan) |
| Oil pump and connection | YUKEN(Japan) |
| Swaled part | HALLITE |
| Air Control System | |
| Cylinder | AIRTAC |
| Air Wave | AIRTAC |
