High Quality Extrusion Blow Molding Machine for HDPE PP Bottles 5~20L

Customization: Available
Type: Extrusion Blow Molding Machine
Raw Material: PE
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Overview

Basic Info.

Model NO.
ABLB90II
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Station
Single or Double
Die Head
Single Head
Max Bottle
20L
Lever Line System
Optional
Suitable Material
HDPE, PP
PLC
Mitsubishi
Electric
Schneider
Invertor
Delta or ABB
Hydraulic Motor
German Dmass Servo Motor
Extrusion Motor
Siemens
Transport Package
Film Packaging
Specification
CE
Trademark
Apollo
Origin
China
HS Code
8477301000
Production Capacity
3 Set/Sets Per Month

Product Description

Company Profile

High Quality Extrusion Blow Molding Machine for HDPE PP Bottles 5~20L

Product Description



10~20L HDPE PP bottles blow molding machine
Automatic extrusion blow moulding machine:

ABLB90full automatic blow molding machine is suitable for various kinds of plastic bottles in all shapes from 13L to 50L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years.
The machine looks neat and nice
Perfect function with economic investment.

Product Parameters




Max. Product volume

50 liters

Dry cycle

450pc/h

Screw diameter

90mm

Screw L/D ratio

25 L/D

Screw drive power

37 KW

Screw heating capacity

18 KW

No.of heating zone

4 zones

Output of HDPE

130 KG/H

Oil pump drive power

30 KW

Clamping force

260 KN

Max.size of mold

450-1000mm

Mold stroke

700X950mm

Max.die diameter

340mm

Die heating power

7.6 KW

Die heating segments

4 zones

Blowing pressure

0.8mpa

Air volume

1.0 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

90 L/MIN

Our Advantages

High Quality Extrusion Blow Molding Machine for HDPE PP Bottles 5~20L

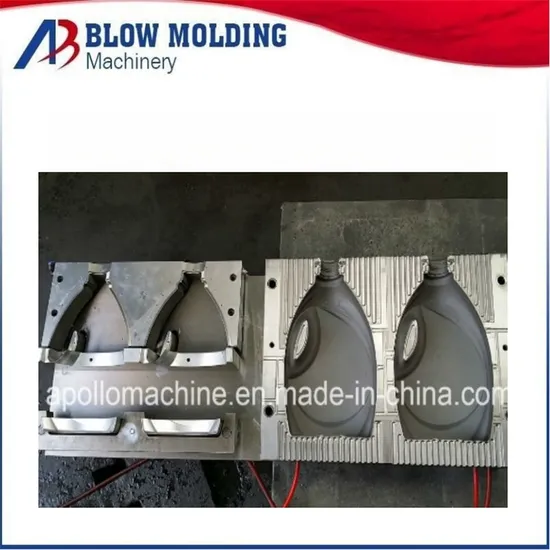

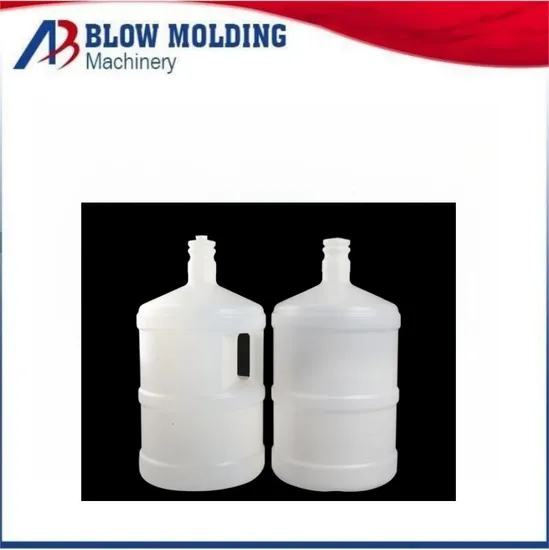

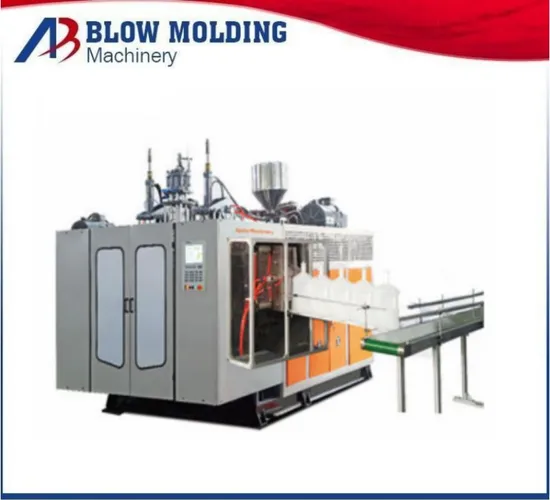

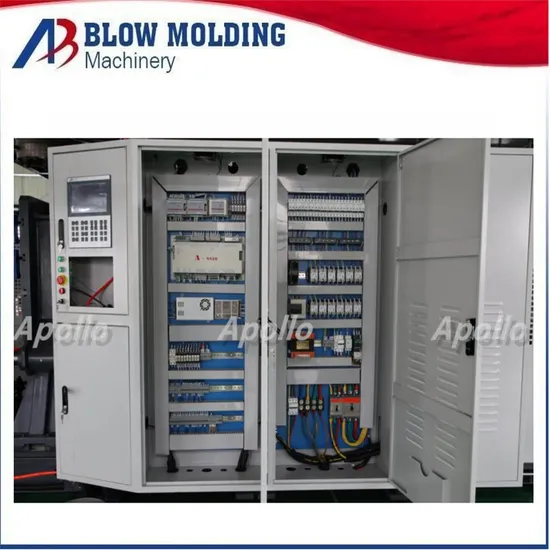

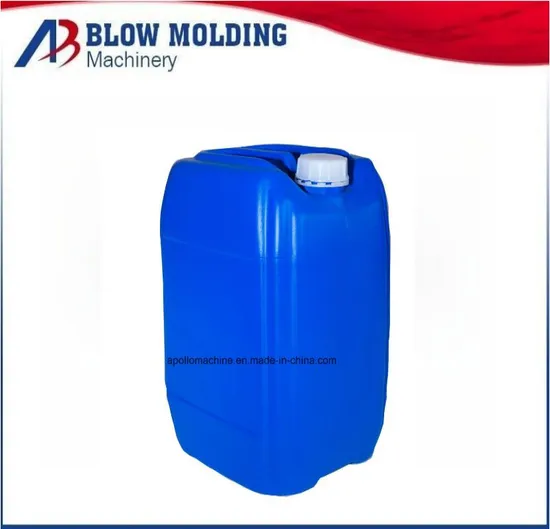

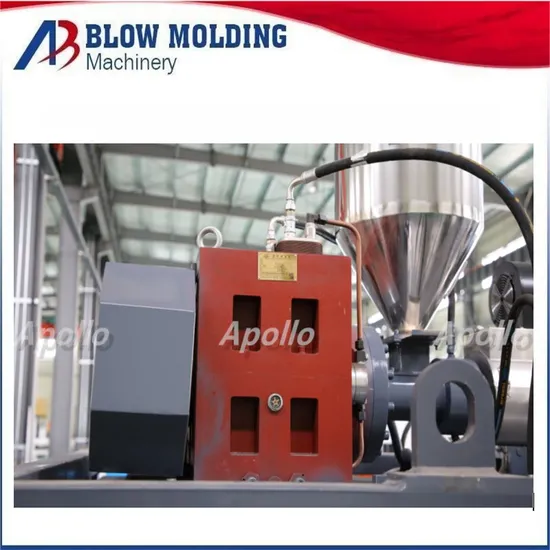

Detailed Photos

High Quality Extrusion Blow Molding Machine for HDPE PP Bottles 5~20L

FAQ

1. Q: -Can the machine customized only for my products?
  A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure  special design and brand of parts special request.

2. Q: -How about the molds ?
  A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various  for optional.

3. Q: -What is the business item for this project ?
  A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed  by buyer and APOLLO .
        b. Port of Loading: SHANGHAI, CHINA.
        c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
        d. Container needed: One 20GP container.
