| Customization: | Available |
|---|---|

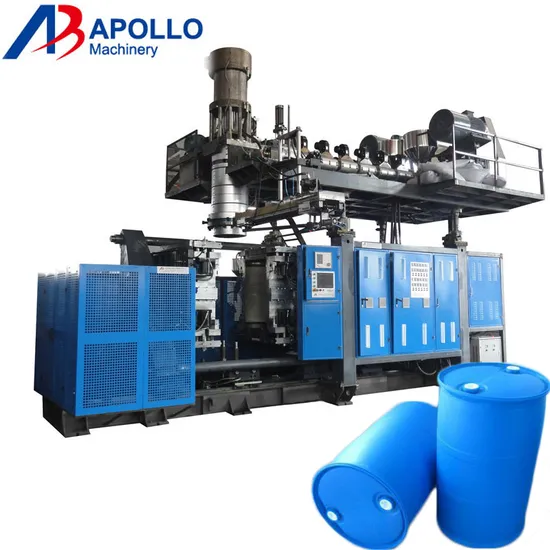

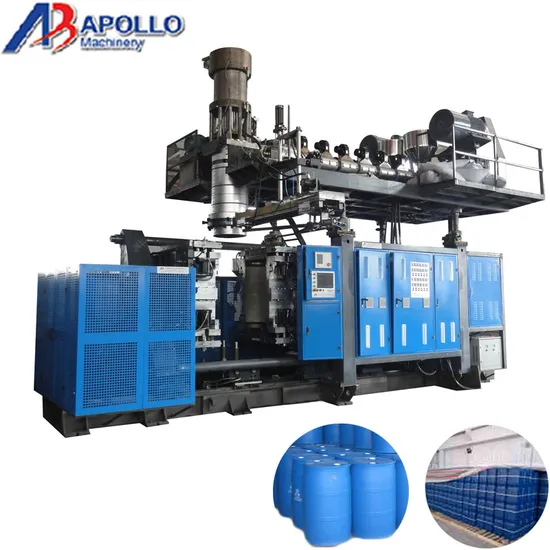

| Type: | Extrusion Blow Molding Machine |
| Raw Material: | PE,Ppand So on |
| Quantity: | |
|---|---|
Technical Parameter
| Basic Parameter | |
| Applicable Material | PE, PP,..... |
| Max. Product Volume | 220L |
| Dry Cycle | 280 PCS/H |
| Machine Size (L×W×H) | 7.8×3.5×5.8(M) |
| Machine Weight | 30T |
| Total Power | 236KW |
| Power Consumption | 128KW/H |
| Plasticzing System | |
| Specification | good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
| Speed Reducer | hard-teeth, low noise & wear-resistant speed reducer |
| Machine Barrel Screw | 120mm,L/D=30, 38CrMoALA high quality nitrogen steel |
| Plasticizing | 350Kg/H |
| Heating Zone | 6 Zone Casting, aluminum heater |
| Heating Power | 135W |
| Extrusion Motor | three phase DC motor (380V,50HZ),110KW |
Technical Parameter
| Basic Parameter | |
| Applicable Material | PE, PP,..... |
| Max. Product Volume | 220L |
| Dry Cycle | 280 PCS/H |
| Machine Size (L×W×H) | 7.8×3.5×5.8(M) |
| Machine Weight | 30T |
| Total Power | 236KW |
| Power Consumption | 128KW/H |
| Plasticzing System | |
| Specification | good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
| Speed Reducer | hard-teeth, low noise & wear-resistant speed reducer |
| Machine Barrel Screw | 120mm,L/D=30, 38CrMoALA high quality nitrogen steel |
| Plasticizing | 350Kg/H |
| Heating Zone | 6 Zone Casting, aluminum heater |
| Heating Power | 135W |
| Extrusion Motor | three phase DC motor (380V,50HZ),110KW |
