Product Description

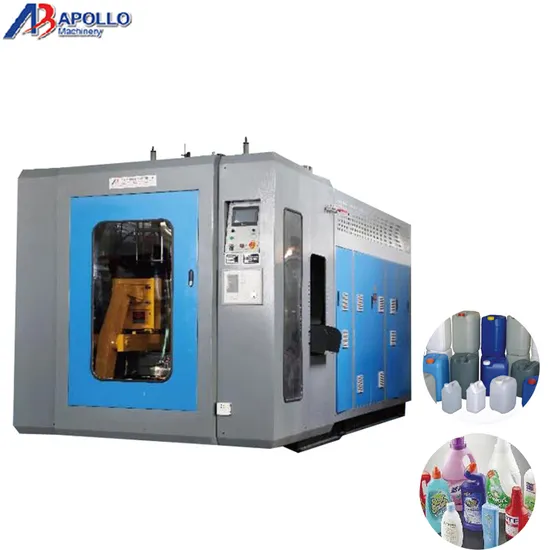

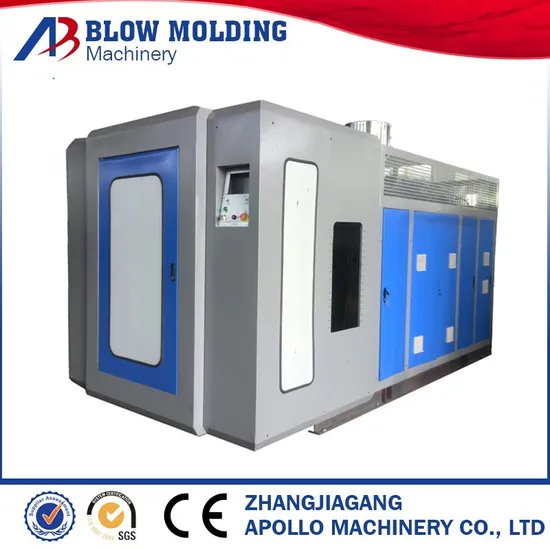

Blow Molding Machine Plastic Making Machine Blow Molding Machine
CONFIGURATION
TEMPERATURE CONTROL MODULEMITSUBISHIJapan
HYDRAULIC PUMPHAITEKETAIWAN
HYDRAULIC VALVEYUKENJAPAN
HYDRAULIC OIL SEALVALQUAJAPAN
INTERMEDIATE RELAYOMRONJAPAN
INVERTERDELTATAIWAN
PNEUMATIC VALVEAIRTACTAIWAN
HUMAN-MACHINE TOUCH SCREENRICHOTAIWAN
PNEUMATIC SWITCH & CONTACTORLGKOREA
HYDRAULIC MOTOR & SCREW MOTORENERGETIC-OXCHINA
PARAMETERS
SPECIFICATIONSUNITSBSM65I SERIERS
Max container capacityL5
Number of die headsSet1
Machine dimension (L*W*H)M3 *1.9 *2.4
Total weightTon3.5

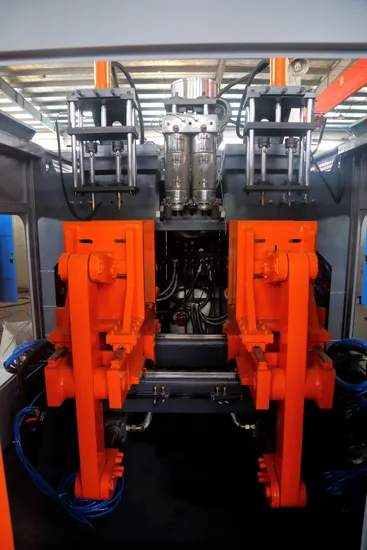

CLAMPING UNIT
Clamping forceKN68
Platen opening strokemm150-500
Platen sizemm320*360
Max mould size (W*H)mm350*370/238*600
Mould thicknessmm153-500
POWER
Max driveKW32
Total powerKW32
Fan power for screwKW0.14*3
Air pressureMpa0.7
Air consumptionM3/min0.9
Average energy consumptionKW17
EXTRDER UNIT
Screw diameter mm65
Screw L/D ratioL/D24
Plasticizing capacityKg/hour70
Number of heating zoneZone3
Extruder heating powerKW13.8
Extruder driving powerKW15

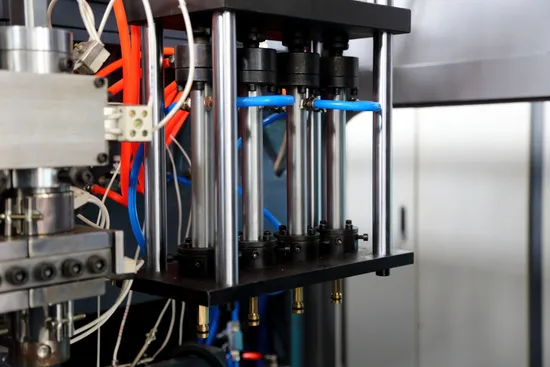

DIE HEAD
Number of heating zoneZone3
Power of die heatingKW5.7
Max die pin diametermm135
Center distance of double diemm160
Center distance of tetra-die mm85
PRODUCT COVERAGE 0-5L
Suitable for:
Detergents bottles, liquid soap bottles, shampoo cosmetic bottles, chemical bottles, food packaging jars, jerry cans, oil bottles, milk bottles, pesticide bottles, kettles, water gallons, tanks, kettles, balls, toys ,daily household products so on.
