| Customization: | Available |
|---|---|
| Type: | Extrusion Blow Molding Machine |
| Raw Material: | HDPE |
| Quantity: | |
|---|---|

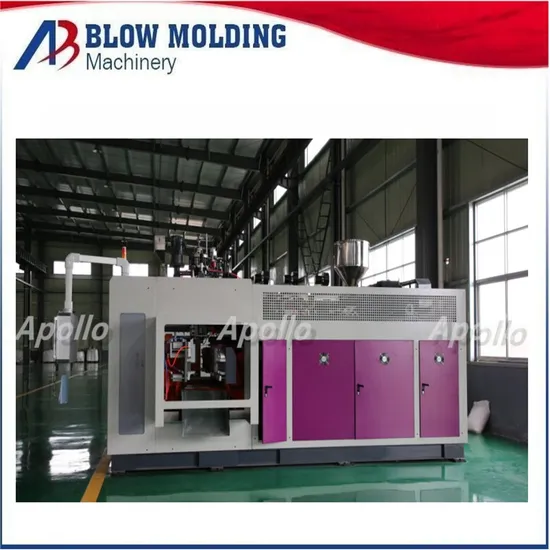

ABLB65 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
| Max. Product volume5 | 5L |
| Out put capacity | 400~600pcs/h |
| Screw diameter | 65mm |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 10KW |
| Screw heating capacity | 2.6KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 35KG/H |
| Oil pump drive power | 4.8KW |
| Clamping force | 32KN |
| Max.die diameter | 80mm |
| Blowing pressure | 0.6mpa |
| Air Volume | 0.4M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 30L/MIN |
| Weight of machine | 6.5 ton |
ABLB65 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
| Max. Product volume5 | 5L |
| Out put capacity | 400~600pcs/h |
| Screw diameter | 65mm |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 10KW |
| Screw heating capacity | 2.6KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 35KG/H |
| Oil pump drive power | 4.8KW |
| Clamping force | 32KN |
| Max.die diameter | 80mm |
| Blowing pressure | 0.6mpa |
| Air Volume | 0.4M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 30L/MIN |
| Weight of machine | 6.5 ton |
