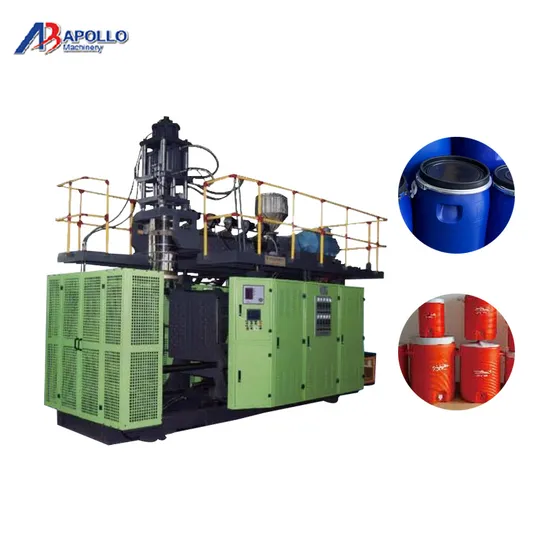

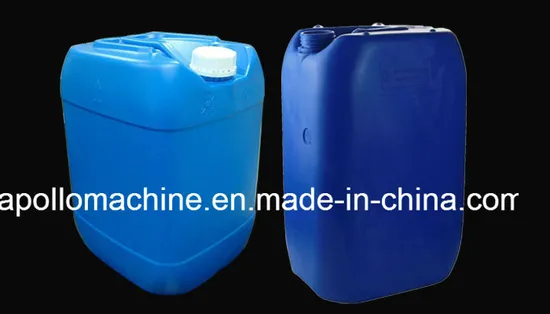

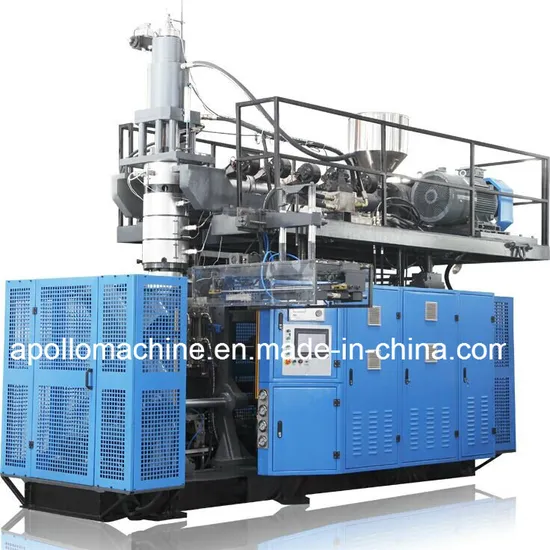

The feature of the machine: Product: 30-60L bottle
Max volume of this machine: 60L
Power supply: 380/220V 50/60 Hz Tri-phase
Output capacity: 60~90 PCS/h
Die head number: 1
Full automatic or not: Full auto
Suitable raw material: HDPE,PP
Main techinal parameter: | Name | ABLD90 |
| Max.product volume | 60L |
| Dry cycle | 450PC/H |
| Screw diameter | 90MM |
| Screw L/D ratio | 25L/D |
| Screw drive power | 45KW |
| Screw heating capacity | 18KW |
| No. of heating zone | 4ZONE |
| Output of HDPE | 150KG/H |
| Oil pump drive power | 15KW |
| Clamping force | 320KN |

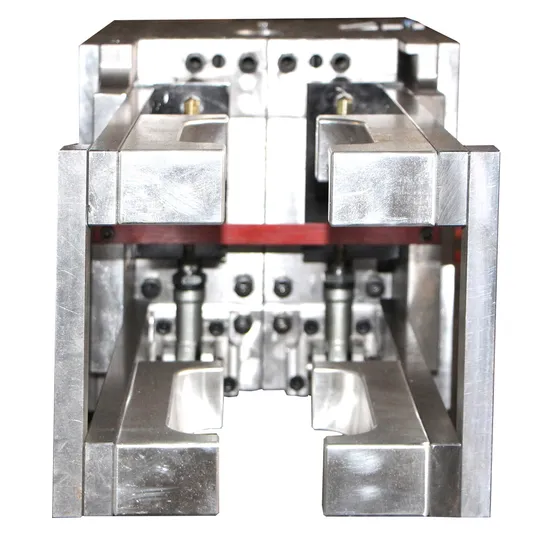

| Max.size of mold | 800×1200MM |
| Material Storage | 6.6L |
| Template size | 900×900MM |
| Mold stroke | 450-1100MM |

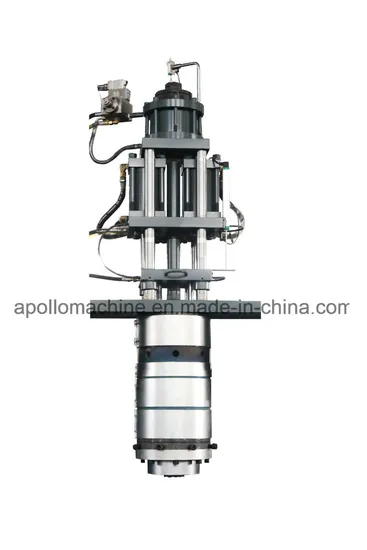

| Max. die diameter | 340MM |
| Blowing pressure | 0.8MPA |
| Air volume | 1.0M^3/MIN |
| Cooling water pressure | 0.3MPA |
| Water consumption | 90MIN |
| Size of machine | 5.2×2.9×4.6L*W*H |
| Weight of machine | 13.5TON |
The main components of the machine: | Electronic Parts | |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |

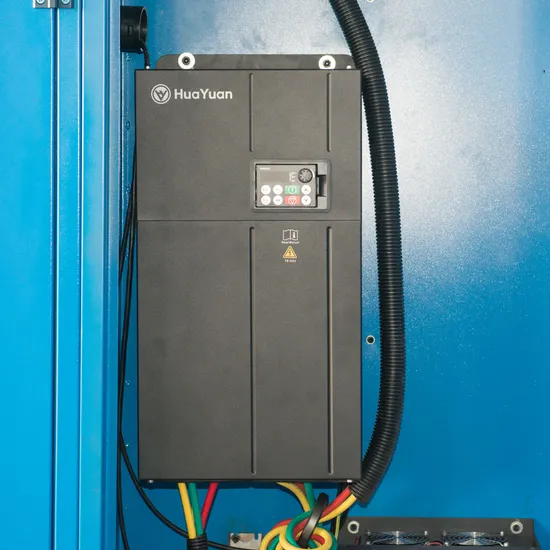

| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN REGION MEANWELL |
| Transducer | ABB |
| Hydraulic Parts | |
| Name | Trader |
| Oil pump | TAIWAN REGION HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
After Sale Service: a. One year quality warranted
b. 24 hours service available
c. Free installation and test aboard
d. Free training operators
