High Speed Extrusion Servo Motor Water Tank Blow Molding Machine

Name: High Speed Extrusion Servo Motor Water Tank Blow Molding Machine
Rating: 5.0 (58 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	PE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB90

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Application

Bottles,Jars,Jerry Cans,Gallons,Containers

Max. Product Volume

5L

Die Head

1/2/3/4

Auto-Deflashing

Availalble

Auto-Lubrication

Available

Suitable Material

HDPE/PP/PVC/PETG/PS/LDPE

Guarantee

One Year

Operator Needed

1~2

Production Period

40 Days

Spare Parts

Free

Transport Package

Film Packaging

Specification

CE, ISO

Trademark

Apollo

Origin

Jiangsu

HS Code

8477301000

Production Capacity

170~190PCS/H

Product Description

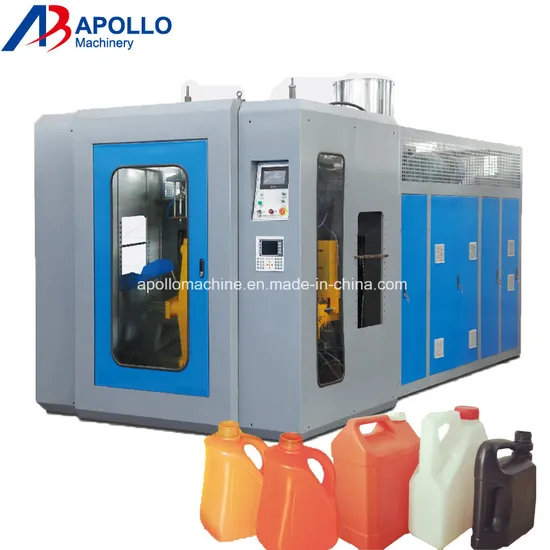

Automatic bottle making machine
Model No.: ABLB75(Double station single die head)

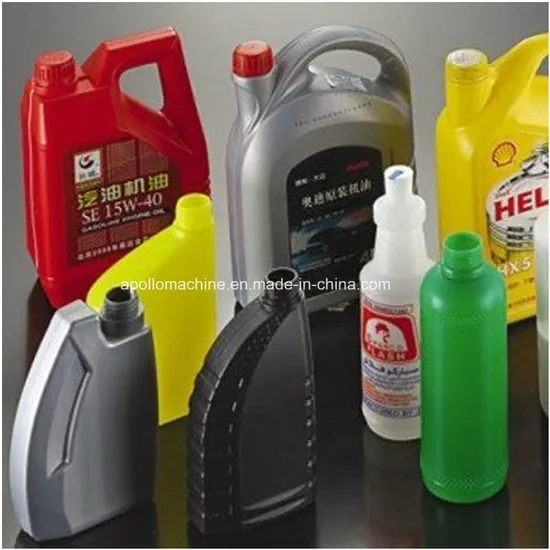

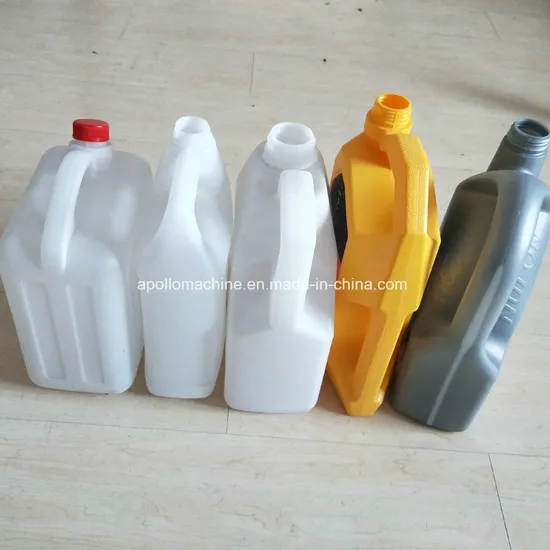

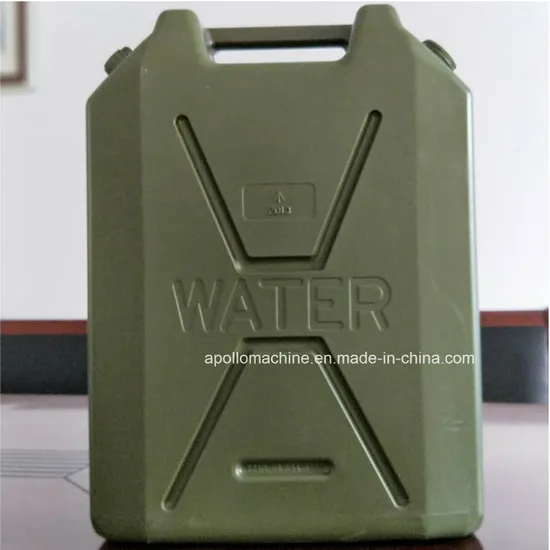

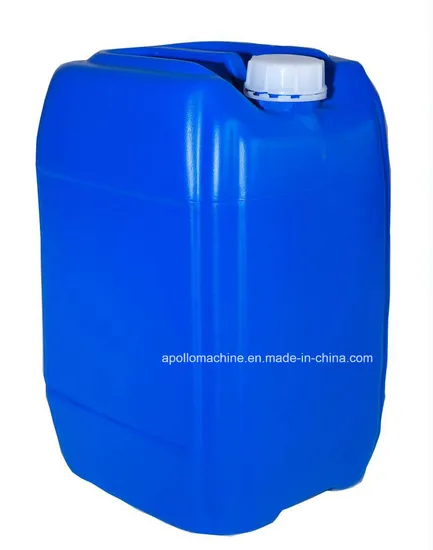

ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.

(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

Technical Parameters: ( ABLB75II)

Max.product volume	8L
Dry cycle	750*2PC/H
Screw diameter	75MM
Screw L/D ratio	24L/D
Screw drive power	22KW
Screw heating capacity	7-8 KW
No.of heating zone	4ZONE
Out put of HDPE	100KG
Oil pump drive power	7.5KW
Clamping force	80KN
Max.size of mold	400*430MM
Template size	380*420MM
Mold stroke	170-520MM
Max.die diameter	170MM
Blow pressure	0.6MPA
Air volume	0.8M^3/_MIN
Cooling water pressure	0.3MPA
Water consumption	80L/MIN
Size of machine	4.22.22.7
Weight of machine	7.5TON
