| Customization: | Available |
|---|---|
| Warranty: | One Year |
| Type: | Extrusion Blow Molding Machine |
| Quantity: | |
|---|---|

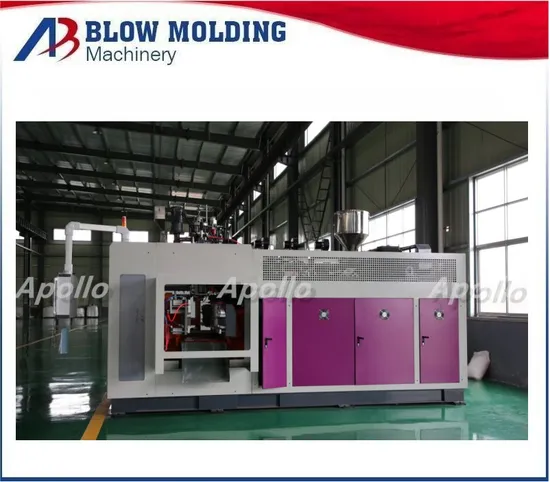

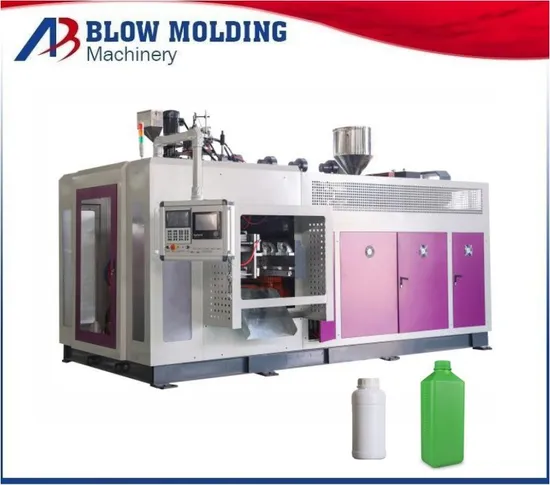

ABLB75II full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
Technical Parameters: ( ABLB75 )
| Max. Product volume | 7.5 liters(single die head) |
| Screw diameter | 75mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 7 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 78KN |
| Max.size of mold | 148-568mm |
| Mold stroke | 400 X 450mm |
| Max.die diameter | 160mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 80 L/MIN |
| Size of Machine | 3.8x2.2x2.8m |
| Weight of machine | 8 ton |
ABLB75II full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
Technical Parameters: ( ABLB75 )
| Max. Product volume | 7.5 liters(single die head) |
| Screw diameter | 75mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 7 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 78KN |
| Max.size of mold | 148-568mm |
| Mold stroke | 400 X 450mm |
| Max.die diameter | 160mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 80 L/MIN |
| Size of Machine | 3.8x2.2x2.8m |
| Weight of machine | 8 ton |
